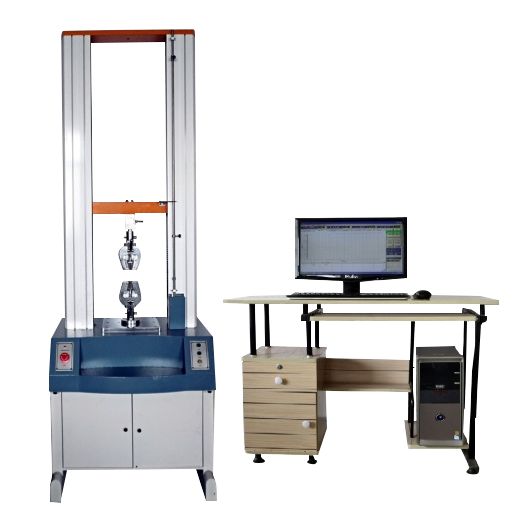

XD-E04 Universal Tensile Strength Testing Machine , Dual Columns Computer Control Electronic Universal Testing Machine
This machine is suitable for stretching and compressing rubber, plastic, aluminum-plastic pipe, composite material, waterproof material, preventer, yarn, fiber, wire and cable, paper, spring, wood, packaging material, tape and other materials , Bending, shearing, tearing, peeling and other mechanical properties test, but also can realize constant stress, constant strain, creep, relaxation and other multi-closed-loop tests, after configuring special devices, it can also complete torsion, cupping
Product use:
This machine is suitable for stretching and compressing rubber, plastic, aluminum-plastic pipe, composite material, waterproof material, preventer, yarn, fiber, wire and cable, paper, spring, wood, packaging material, tape and other materials , Bending, shearing, tearing, peeling and other mechanical properties test, but also can realize constant stress, constant strain, creep, relaxation and other multi-closed-loop tests, after configuring special devices, it can also complete torsion, cupping and other test items.
The tensile testing machine system is suitable for measuring the mechanical properties and related physical parameters of various materials under tension, compression, bending, shearing, tearing, peeling, puncture and other states. It can be used for tensile, compression, three-point bending, four-point bending, shearing, tearing, finished shoe puncture, carton holding pressure, foam cyclic compression, spring tension and compression and various dynamic and static cycle tests, and can be used for Test the breaking strength, elongation at break, tear strength, stitch strength, stitch slip, peel strength, etc. of various yarns, fabrics and other textiles
Technical parameter:
A. Load cell: 50Kg; 100Kg; 300Kg; 500Kg; 1000Kg; 2000Kg choose any one suitable for your company.
b. Strength Resolution: 1/10000
c. Force Accuracy: ≤0.5%
E. Displacement resolution: 1/1000
F. Displacement accuracy: ≤1%
g. Metal Extensometer Resolution: 1/1000
H. Metal extensometer accuracy: ≤0.5%
i. Accuracy of large deformation extensometer: ±1mm
J. Speed range: 0.01-500mm/min (special test speed can also be customized according to customer needs)
K. Walking space: 950mm (excluding gripper, special test space can also be customized according to customer needs)
L. Test width: 400mm (special test width can also be customized according to customer requirements)
M. Power supply: 220V 50HZ
N. Power: about: 1.6KW
O. Machine size: about 660×720×2000 mm length×width×height
P. Machine weight: about 206 kg
