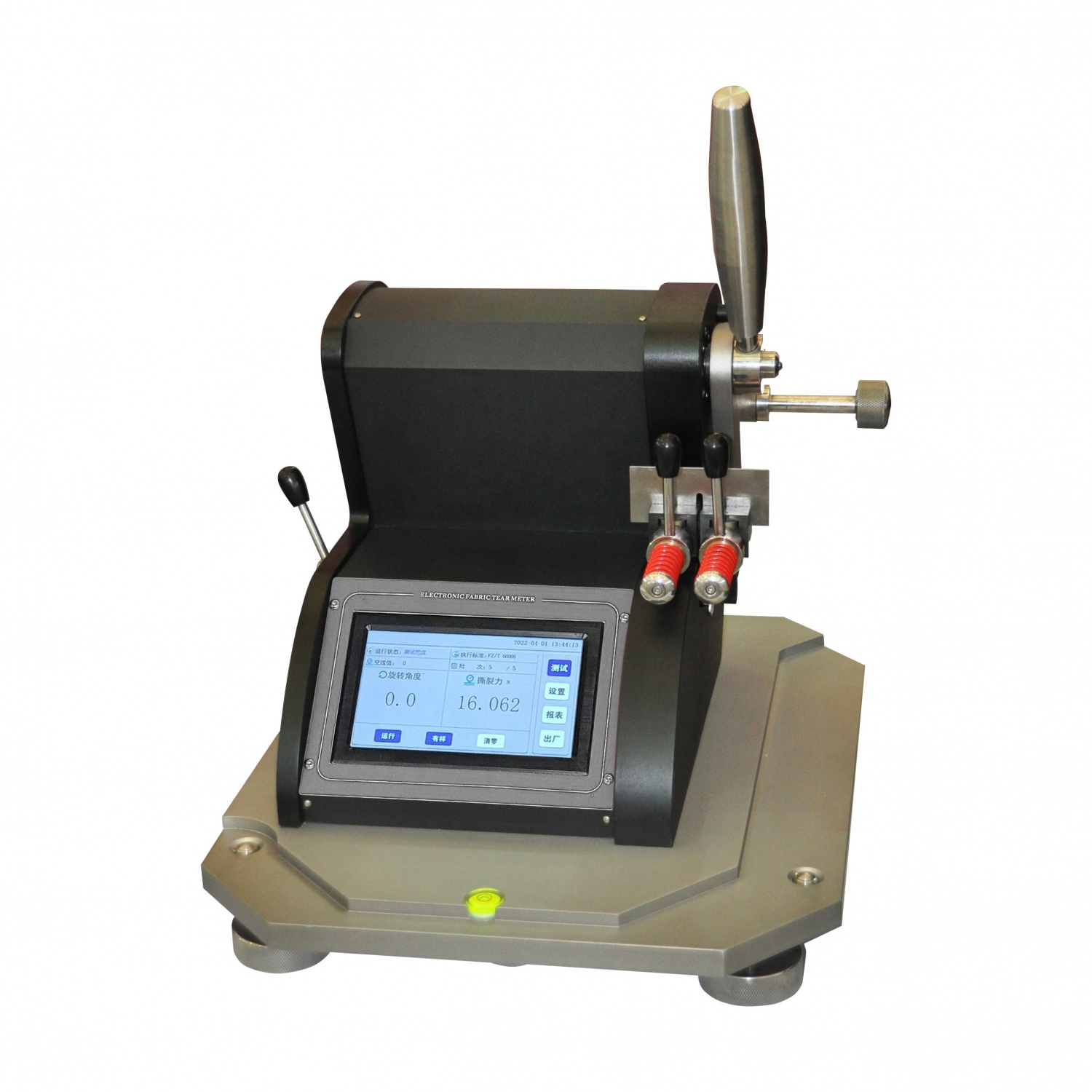

XD-B07 Fabric Paper Digital Tearing Tear 128n Testing Machine
It is used to measure the tear resistance of various woven fabrics (Elmendorf method), and can also be used to measure the tear resistance of thick paper, plastic cloth, electrical tape, etc.
Scope of application:
It is used to measure the tear resistance of various woven fabrics (Elmendorf method), and can also be used to measure the tear resistance of thick paper, plastic cloth, electrical tape, etc.
Instrument Features:
1. Microcomputer control, using the kinetic energy method pioneered in China to detect
2. Film panel, Chinese and English LCD man-machine interface
3. Pneumatic clamping, automatic incision
4. The measurement unit can be freely set (N, cN, gf, cP)
5. Automatic calibration of the instrument, standard communication interface, professional development of supporting test system, online work, more powerful functions
Standards:
GB/T 3917.1 GB11999-89 FZ/T60006 FZ/T75001 ISO1974/9290 ASTM D1424/5734/1922 etc.
Technical parameter:
Test range | A hammer: 0～16N B hammer: 0～32N C hammer: 0～64N D hammer: 0～128N |
Test accuracy | ≤±0.2％F·S |
Tear length | 43mm |
| Automatic incision length | 20±0.1mm |
| Sample size | 100×63mm |
| Specimen Holder | Pneumatic |
| Working power | AC220V 50Hz 100W |
| Size | 560×420×530mm |
| Weight | 68Kg |
