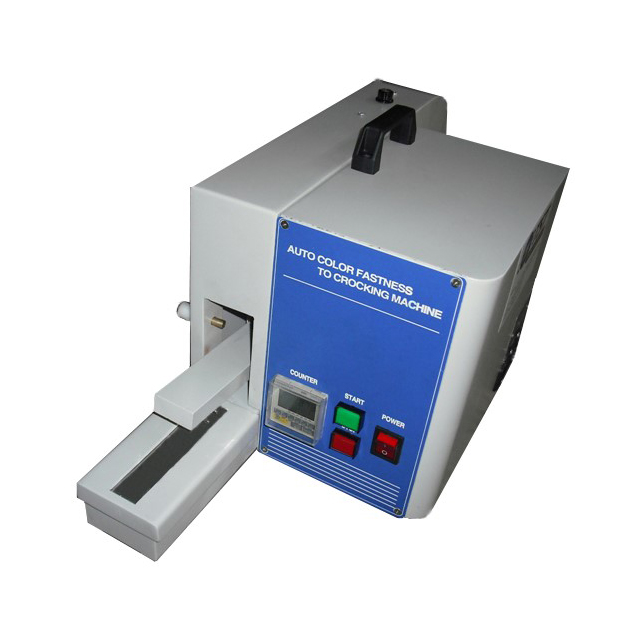

XD-C07 Fabric Rubbing Color Fastness Tester
The machine determines the degree of staining of dyed fabrics due to rubbing. It is widely used in common color fastness testers. To test the decolorization performance of dyed fabrics under the action of friction in dry/wet state. Suitable for textiles such as yarn, yarn-dyed, printing and dyeing
Product introduction:
The machine determines the degree of staining of dyed fabrics due to rubbing. It is widely used in common color fastness testers. To test the decolorization performance of dyed fabrics under the action of friction in dry/wet state. Suitable for textiles such as yarn, yarn-dyed, printing and dyeing
Standard:
BS1006 D02 ISO105×12/D02 M&SC8 AATCC8/165 BS4655 NEXT6 FCC3 JISK6328, L0815, L1084; JIS L 0849 I
Technical parameter:
Friction stroke | 104±3mm |
| Movement mode | Electric reciprocating |
| Friction head | fleece fabric:19mmx25.4mm |
| Friction head | Other fabrics: diameter 16mm |
| Cotton rubbing cloth | cloth Fleece fabric:25±2mm×100±2mm |
| Cotton rubbing cloth | cloth Other fabrics:50±2mm×50±2mm |
| Test speed | 60±2r/min |
| Reciprocating stroke | 104±3mm |
| Friction head diameter | φ16mm |
| Gravity of the indenter | 9 N |
| AATCC rubbing cloth | 1 box (1000 pieces/box) |
| standard clamp ring | 1 |
| Standard sandpaper | 2 sheets |
| Friction speed | 1s reciprocating 1 time 60cpm |
| Dimensions | 600mm×225mm×270mm（L×W×H） |
| Weight | 9.5kg |
| Power | 220V50Hz |
