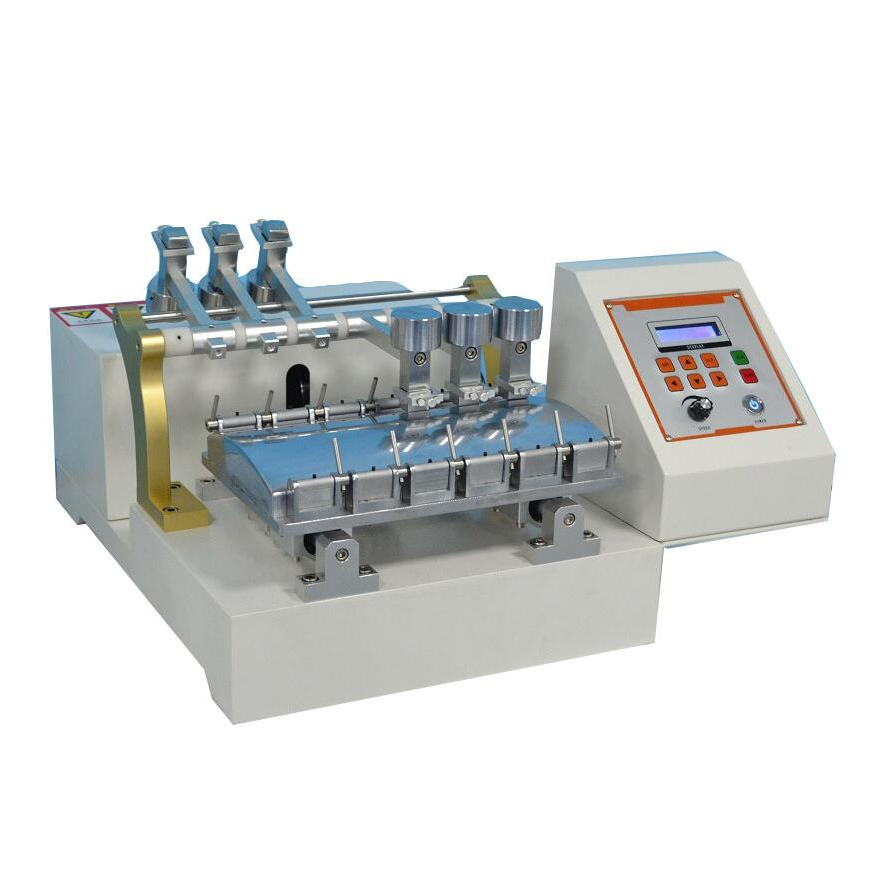

XD-C09 JIS-L0801 Rubbing Color Fastness Tester
It is mainly used for evaluating and judging the color fastness to rubbing of dyed fiber products. Use dry or moist white cotton cloth to tie the surface of the friction hammer of the machine, rub the colored test piece with a certain load and number of times, and compare the gray scale to evaluate the dyeing rubbing fastness level. It can also be used as a friction test for organic solvents. Number of test samples: 6 groups. Two sets of test heads of 200g and 500g are configured. This machine i
Detailed introduction:
It is mainly used for evaluating and judging the color fastness to rubbing of dyed fiber products. Use dry or moist white cotton cloth to tie the surface of the friction hammer of the machine, rub the colored test piece with a certain load and number of times, and compare the gray scale to evaluate the dyeing rubbing fastness level. It can also be used as a friction test for organic solvents. Number of test samples: 6 groups. Two sets of test heads of 200g and 500g are configured. This machine is a testing machine based on the rubbing tester type 2 (gakuchan shape) specified in the color fastness test of textiles in the Japanese Industrial Standard and the test method for color fastness to rubbing (JIS L 0849). It is mainly used to evaluate and judge the color fastness to rubbing of dyed fiber products. Through the exchange of various accessories sold separately, it can be applied to the [hair flocking strength test] of flocked fabrics, the [friction decolorization test] of artificial leather, and the friction and abrasion resistance test of cardboard, printing, ink, paint, etc. A friction tester that can be applied to various materials.
Compliant with standards:
JIS-L0801, 0823, 0849Ⅱ, 1006, 1084, K6328, P8136, TR369B
Technical parameter:
test station | 6 groups |
Test track length | 100±1mm |
friction hammer | The arc surface radius of the friction surface is R45mm curved surface, the upper part is 20mm×20mm, and the contact area is about 100mm^2 |
The distance between the shaft of the friction arm and the center of the friction head | 110mm |
friction table | Friction surface arc, radius R200 |
Friction hammer load | 200g |
Auxiliary load | 300g |
Friction speed | 30±2r/min |
White cotton cloth | 50mm×50mm |
Specimens | 220mm×30mm, two pieces parallel to the warp and weft |
Counter | 0~99999 times can be set |
Weight | ≈70Kg |
Power | 1∮ AC 220V 3A 200W |
