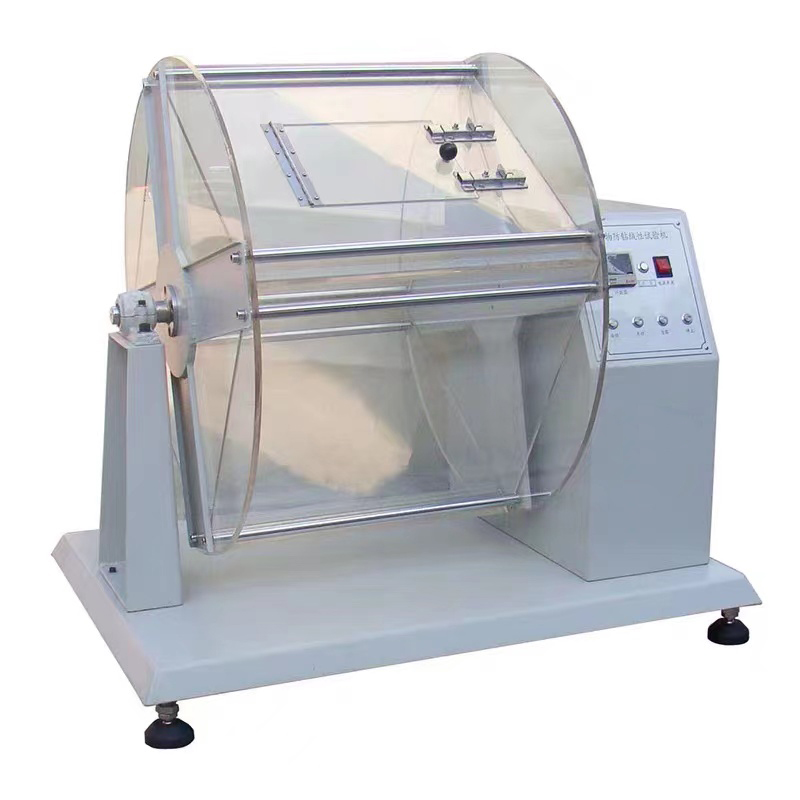

XD-B33 Textile Fabric Penetration Resistance to Feather and Down Testing Machine Introduction
The machine is used to test the ability of the inner lining material, down or fiber to drill through the fabric of bedding such as cold clothing and quilt cover. Its electronic counter controls the test cycle for each test, and it features an interlocking plastic cover for safety.
Introduction:
The machine is used to test the ability of the inner lining material, down or fiber to drill through the fabric of bedding such as cold clothing and quilt cover. Its electronic counter controls the test cycle for each test, and it features an interlocking plastic cover for safety.
Working principle:
Cut a sample of the specified size from the sample fabric to be tested and sew it into a pocket of the specified size, fill it with a certain quality of down, feather or a mixture of the two, and sew the open end to make a test pad of the specified size . Install the two sides of the prepared test pad on the fixture of the instrument to fix and clamp it. After starting the instrument, the number of down and feathers penetrating the fabric is counted after testing the specified number of times, thereby judging the degree of anti-drilling down of the fabric.
Accessories:
Plastic bag: Low-density polyethylene (PE-LD) material, flat plastic bag with a thickness of (25 ± 1) μm, internal dimensions: Width: (150 ± 10) mm Length: (240 ± 10) mm
Auxiliary tools:
Electronic balance (sold separately): The balance for weighing the filling must be accurate to 0.1g, and the balance for weighing the penetrating down feather must be accurate to 0.1mg
Standard:
STS 47 BS 12132 EN 12132/1, GB/T12705.1
Technical parameter:
Fixture spacing: | 44±1mm |
Eccentricity: | 25±0.5mm |
Test speed: | 135r/min |
Sample and sample pad size: | cut sample (140±5)mmX (420±10)mm, sample pad 120mmX210mm |
Filling: | Down, feather or a mixture of both |
Test times: | 2700 rpm |
Counter: | LED liquid crystal display 0~99999 times can be set |
Volume (WxDxH): | 40x37x26cm |
Weight: | 20Kg |
| Power supply: | 1∮ AC 220V 3A |
| Executive standard: | GB/T12705.2 |
| Internal size of rotary box: | 450mm×450mm×450mm (LXWXH) |
| Rotary box speed: | 45±1r/min |
| Rubber ball: | 140±5g hardness 45±10 Shore (10 grains) |
| Counting range: | 1—9999, PLD display |
| Dimensions: | 1080mmX520mmX670mm (LXWXH) |
| Power supply: | 1∮, AC220V, 3A |
| Weight: | 55kg |
