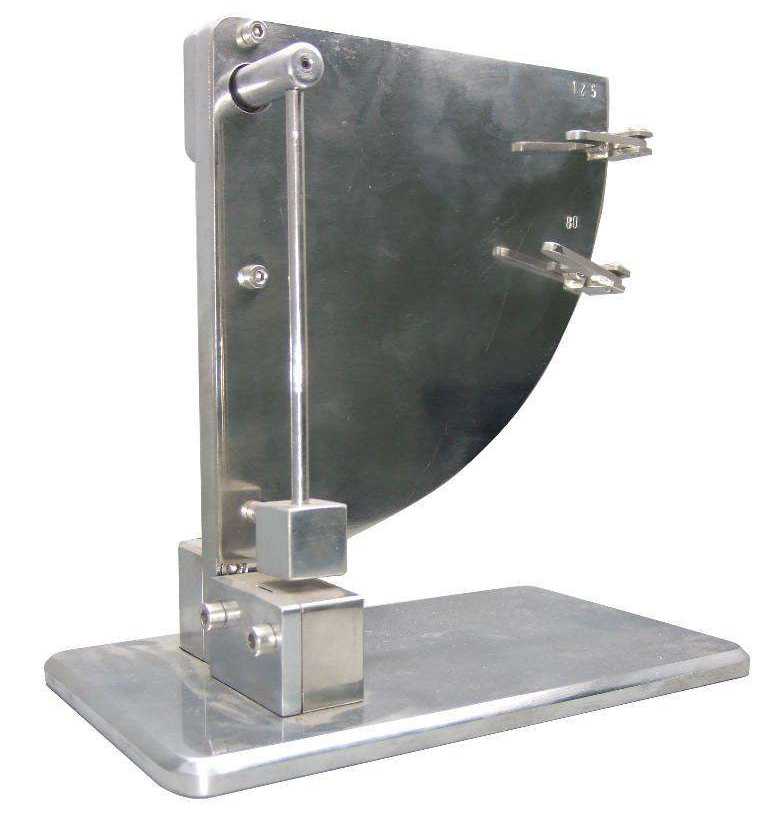

Fix the button to be tested on a clamp of suitable size, facing the pendulum, release the pendulum from different heights according to the size of the button, make it impact the button, and record the state of the button after the test, such as broken, broken Or deformation, etc., to assess the impact strength of the button.

Accessories:

Specimen Grip Block

Auxiliary tools:

magnifying glass (sold separately): 5X magnifying glass

According to the standard:

BS 4162

Technical parameter:

Swing arm:	130mm, 16g
Pendulum:	53g
Impact height:	80mm/125mm
Sample:	14#~48# button
Volume (WDH):	20x12x20cm
Weight:	3.5Kg
