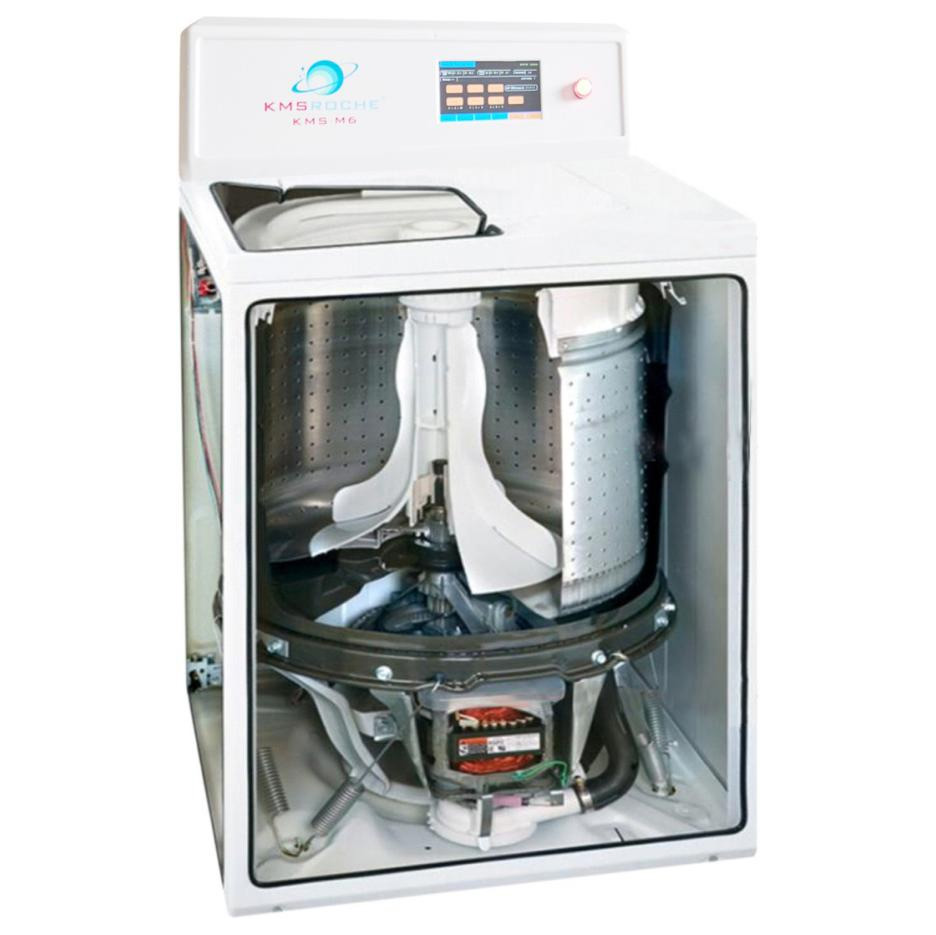

XD-C20 Fabric Shrinkage Tester Lab M6 Washing Testing Machine
This machine is a testing machine specially designed to meet the shrinkage rate of laboratory textiles. It meets the requirements of the latest AATCC standards (Table I, IIC, IID, IIIA, IIIB) and the M6 Monograph standard developed by AATCC.
Product introduction:
This machine is a testing machine specially designed to meet the shrinkage rate of laboratory textiles. It meets the requirements of the latest AATCC standards (Table I, IIC, IID, IIIA, IIIB) and the M6 Monograph standard developed by AATCC.
Compliant with standards:
AATCCTM88B, TM88C, 124, 135, 143, 150, LP1

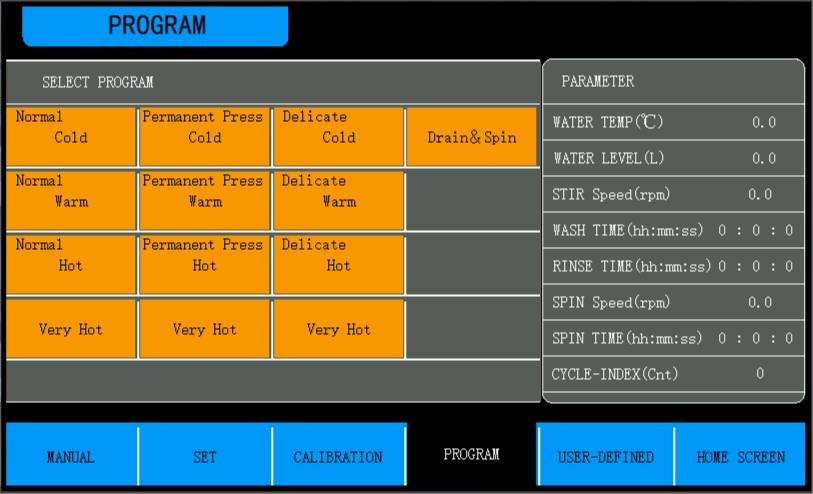

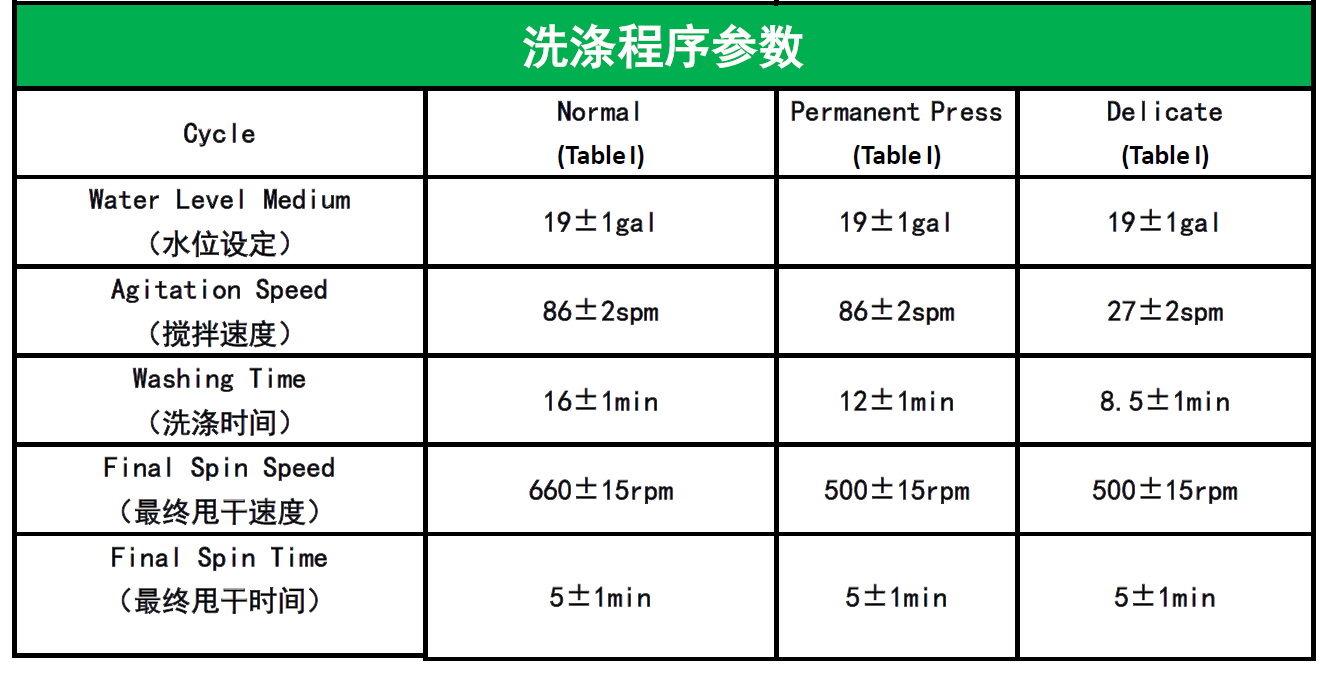

Standard washing program:
▲Normal
▲Permanent press
▲Delicate
▲Cstom
▲Drain&Spin
Technical parameter:
| Laundry capacity: | 10.5KG |
| Power supply: | 220V/50Hz 220V/50Hz 1.5KW |
| Machine size (H*W*D): | 1100mm * 650mm * 710mm |
(This machine does not have a heating function, and the hot water needs to be supplied by an external water heater.)
Features and Functions:

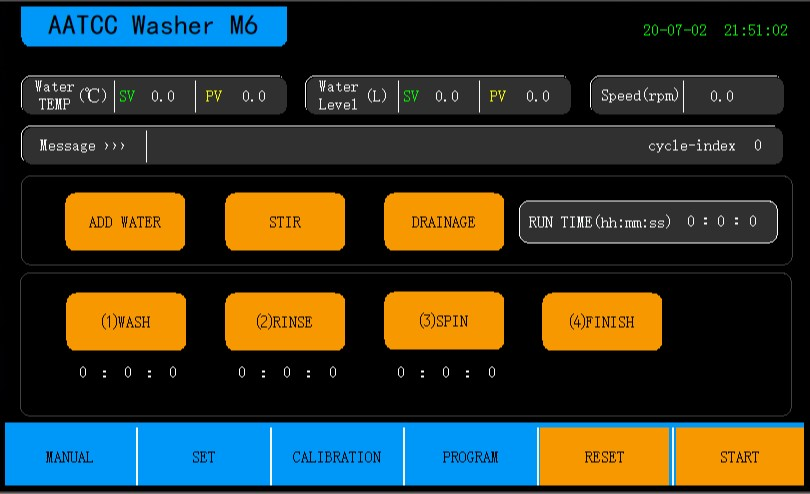

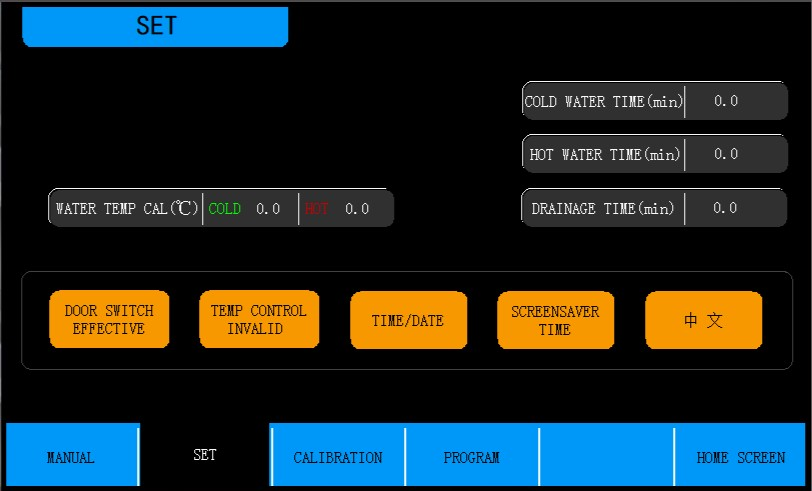

▲Using an industrial-grade touch screen controller, multi-language options (Chinese and English), to meet different needs.
▲The water temperature in the tank can be displayed, and the water temperature can be controlled, and the proportion of cold and hot water can be adjusted.

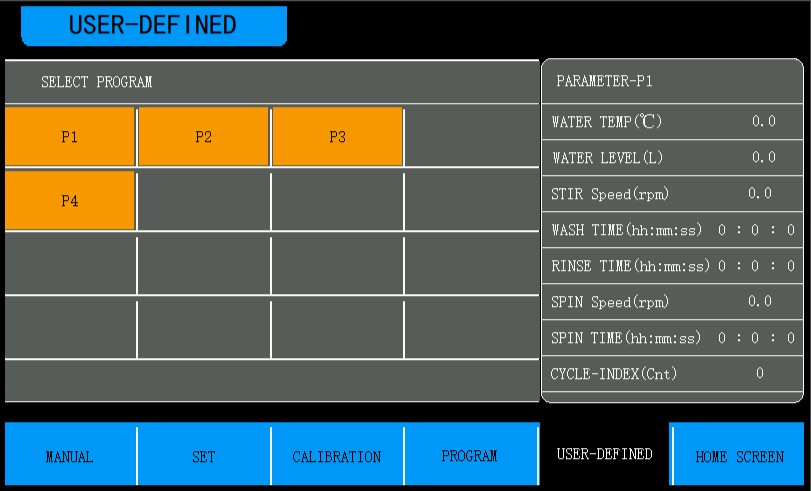

▲According to the powerful custom function, it can be set as required: water temperature, water volume, stirring speed, washing time, rinsing time, dehydration speed, dehydration time, cycle washing times.

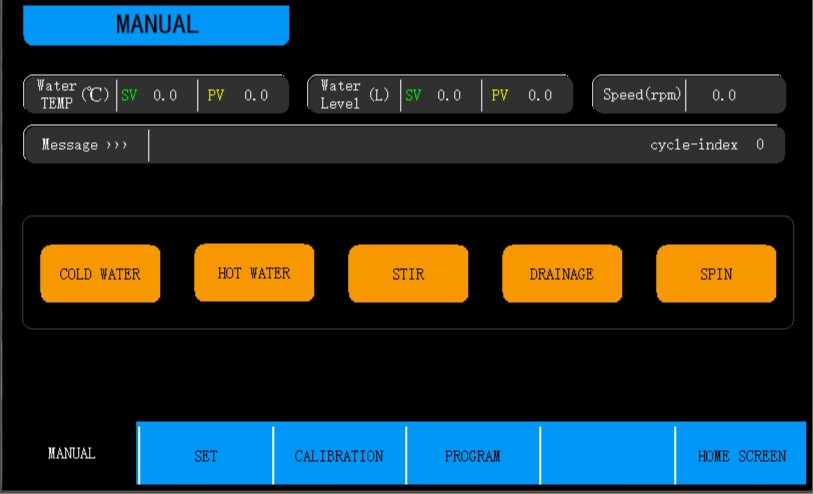

▲Manual mode, you can add cold water, heat water, wash, drain and spin dry separately.

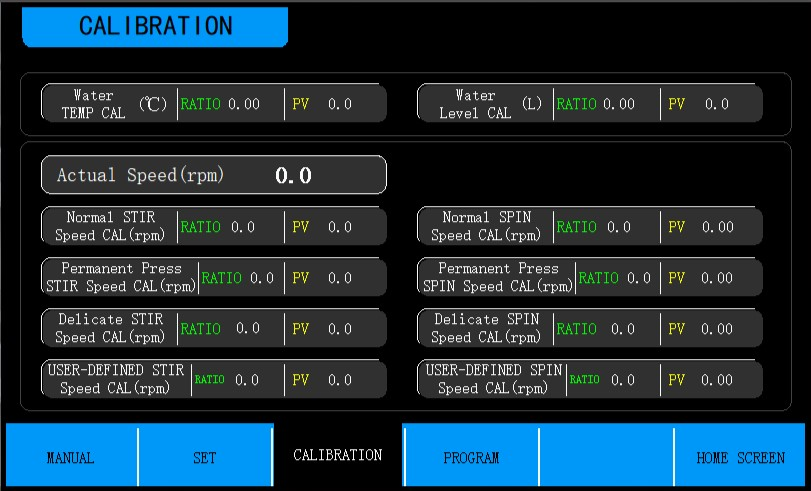

▲Calibration function, water temperature calibration, water volume calibration, stirring speed calibration, dehydration speed calibration.
▲The door lock can be selected (valid or invalid), humanized design.
▲Flashing signal lights to remind the operator to pay attention or test the knot speed.
▲Fault alarm function is convenient for maintenance and judgment.

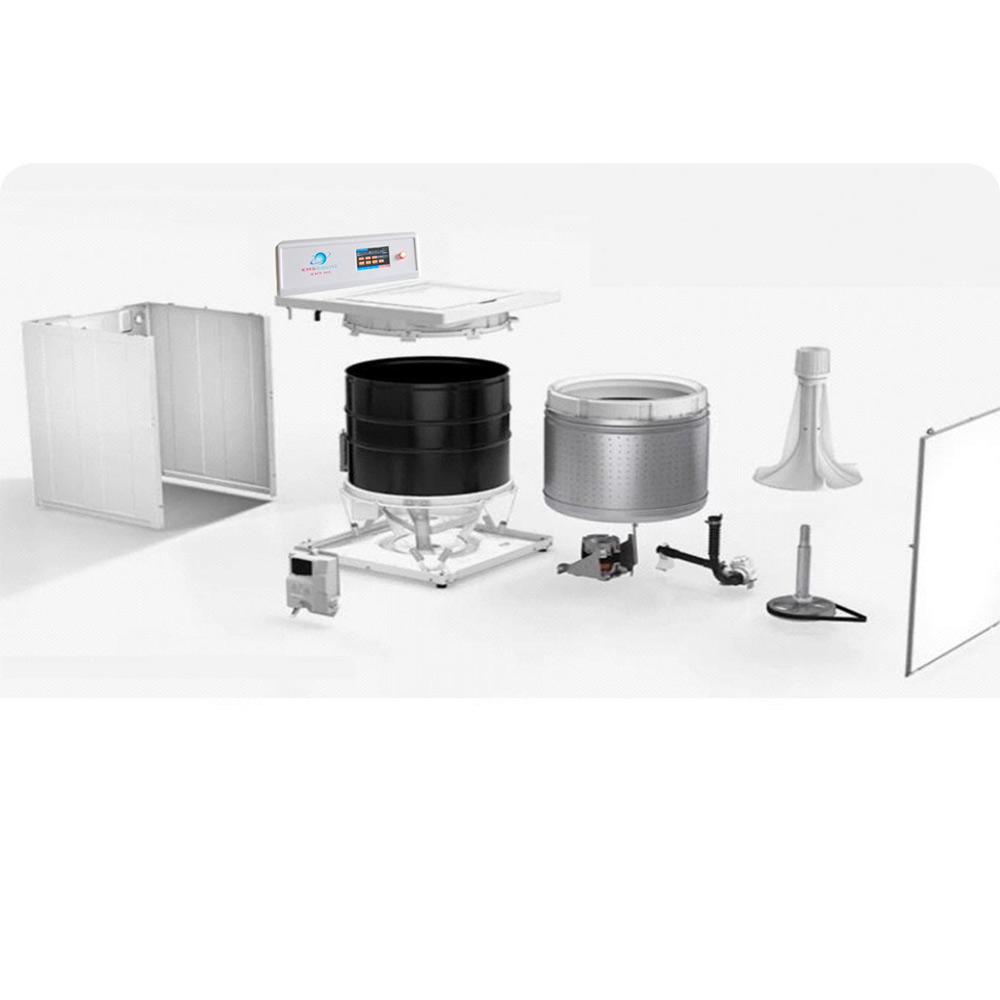

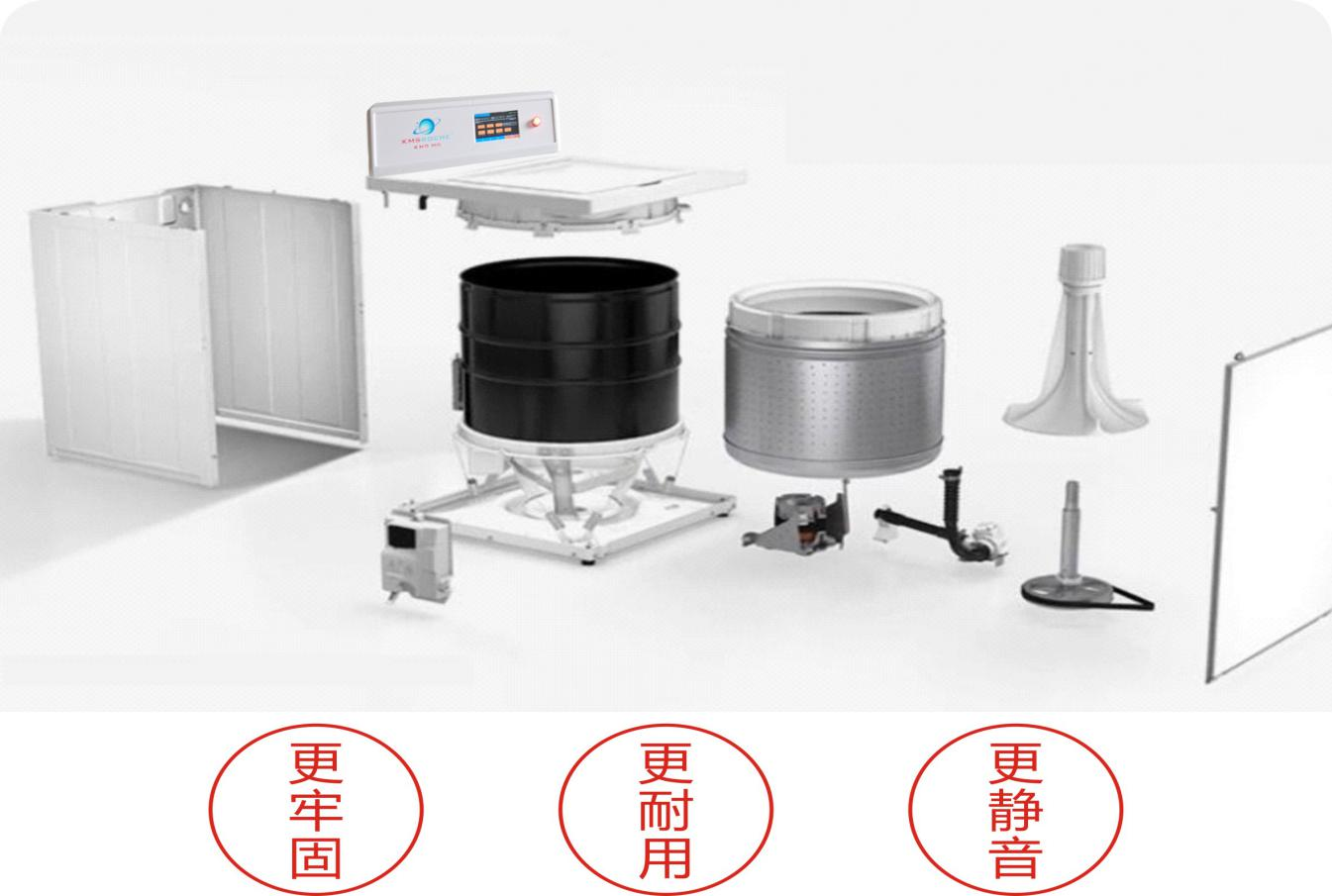

Sturdy body design:
▲Ceramic coated steel outer barrel.
▲Stainless steel washing inner barrel.
▲High-power servo variable-speed motor, good stability and durability.
