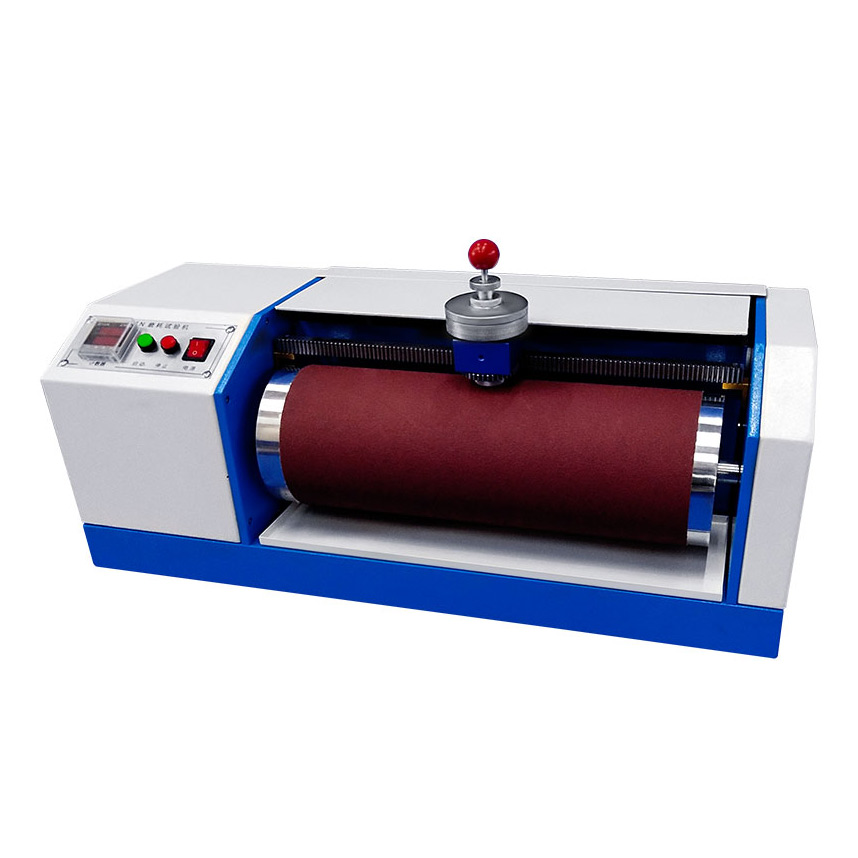

XD-F210 DIN Rubber Abrasion Resistance Tester
This machine is applies flexible meterials,rubber,tires,conveyor belt,shoes,leather,soft synthetic leather,leather...and other materials,soft materials,Measure of the quality of the wear and tear.
Product Description:
This machine is applies flexible meterials,rubber,tires,conveyor belt,shoes,leather,soft synthetic leather,leather...and other materials,soft materials,Measure of the quality of the wear and tear.
Standards:
GB/T 9867, GB/T 20991, GB/T 26703, EN ISO 20344, ISO 4649, DIN 53516
Specification:
Wheel diameter: | ￠150mm |
Wear stroke | 40±0.2M |
Stroke setting | 20m/40m preset |
Fixture lateral displacement | 4.20±0.04mm/r |
Wheel rotate speed | 40±1r/min |
Test mode | autorotation/non-autorotation preset |
Weight load | 2.5±0.1N, 5±0.1N, 10±0.1N |
Sandpaper | 60# original German factory |
Size (W*D*H) | 95×66×31cm |
| Weight | about 55kg |
| Power supply | AC～220V 50HZ |
