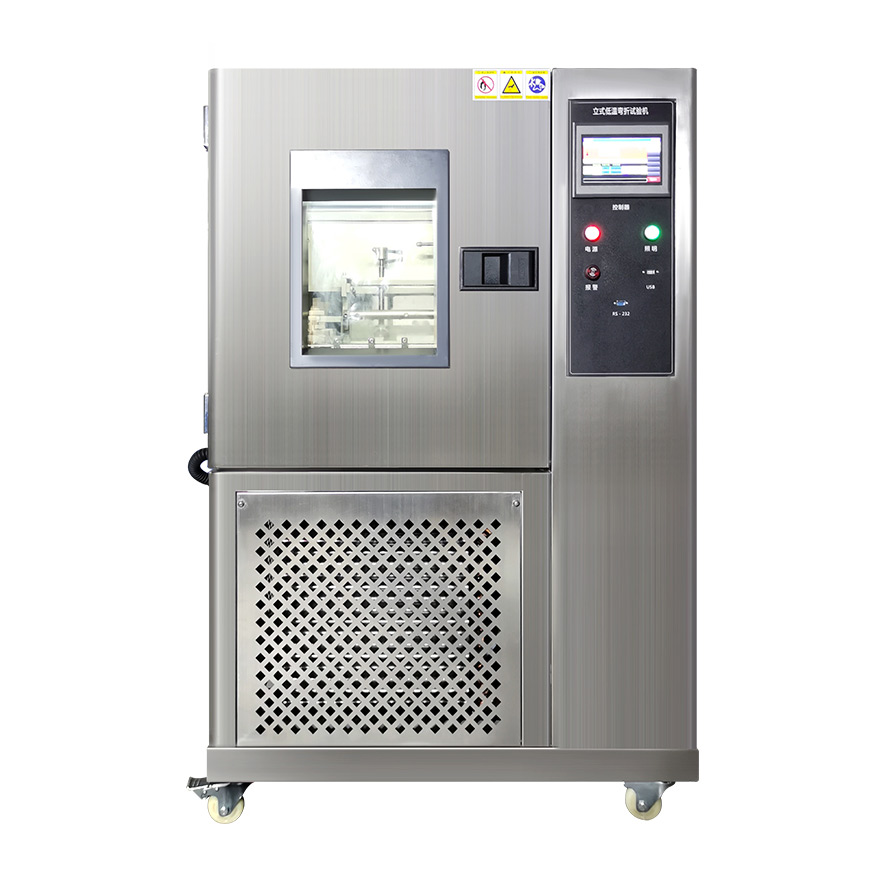

XD-F211C Freezing Flexing Durablity Test Machine
Vertical type low temperature flexing tester is used to test if the materials such as leather, textile, rubber, shoes can endure the flexing at low temperature.
Product Description:
Vertical type low temperature flexing tester is used to test if the materials such as leather, textile, rubber, shoes can endure the flexing at low temperature. Different fixtures can be installed in the inner box, and all the equipments are made of stainless steel..
Standards:
ASTM D 1790, D 1593, 1052, JIS K6545, EN ISO20344, HG/T24I I, HG/T287I, GB/T2099I, CNS 7705, QB/T2224, QB/T 1471, DIN 53351, Adidas GE-24 , Adidas GE-57, SATRA TM92, SATRA TM 161
Specification:
Inside and outside tank material | stainless steel SUS304# |
Controller | 7-inch touch screen control |
Temperature range | normal temperature ~ -30 ℃ (optional) |
Inner box clamps | bending resistance of finished shoes (2 sets of front heel, 1 set of ROSS twists), 5 sets of leather telescopic clamps |
Protection device | thermal protection shutdown, leakage shutdown, over-temperature protection, overload protection and other functions |
Temperature control accuracy | ±0.3℃ |
Distribution uniformity | ±1℃ |
Cooling speed | about 40min from normal temperature to -30℃ |
Refrigerant | R404 environmentally friendly refrigerant |
| Compressor | French Taikang |
| Compressor start delay | 5min |
| Power | 4.5KW |
| Insulation material | rigid foam and glass wool |
| Counter | touch screen control |
| counting range | 0～9999, 9999 eight digits |
| Window | 210×35×270mm, two vacuum layers |
| Window light | P1 light, 5w |
| Power supply | AC～220V 50Hz |
| Motor | gear reduction motor |
| Inner box size | 500×600×500mm |
| Size (W*D*H) | 120×115×160cm |
| Weight | about 280kg |
