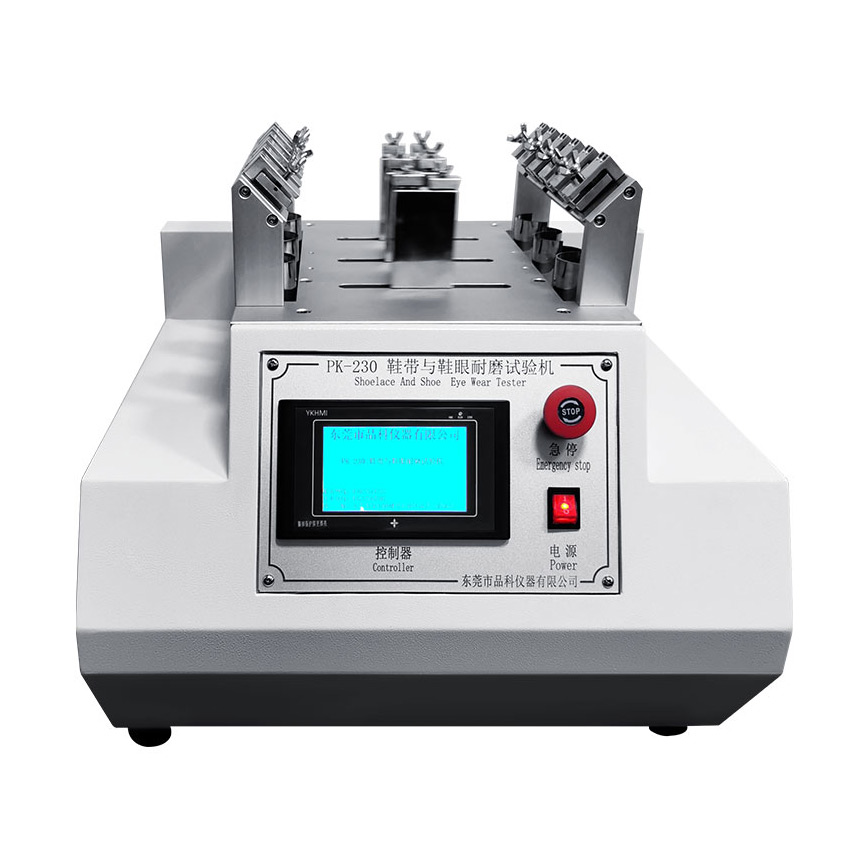

XD-F230A Shoes Lace and Eyelets Abrasion Testing MachineEquipment
This machine is suitable for the test method of the wear resistance of shoelaces. The principle is that two shoelaces cross each other, and one end is fixed on the same movable holder that can reciprocate linearly; The two shoelaces are rubbed against each other to check the degree of wear and tear through the reciprocating motion.
Product Description:
This machine is suitable for all types of shoelaces and shoelaces. Pass a section of shoelace through the shoehole clamped by a fiberboard, the shoelace and the shoelace are 90°, the fiberboard and the shoelace are 45°, and then Tighten the shoelaces under the standard tension, and repeatedly pull back and forth through the eyelets. When the shoelaces are damaged, stop the test.
Standards:
GB/T 3903.36, ISO 22774, BS 5131, SATRA TM93
Specification:
Sampling | 6 groups |
Weight | 450±5g |
Stroke | 70±2 mm |
Fiberboard | 25×25×3mm |
Eye hole | ф4.5mm |
Size (W*D*H) | 55×56×40cm |
| Weight | about 40kg |
| Power supply | AC～220V 50HZ |
