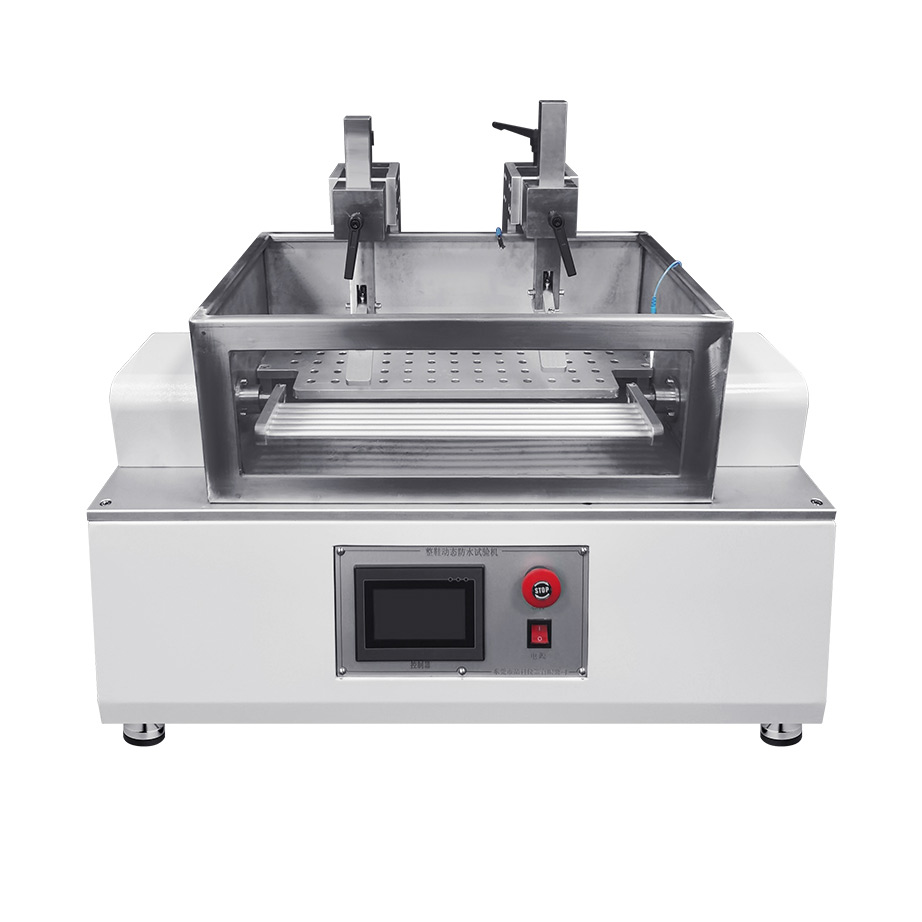

put a certain amount of colored water in the water tank, and then install the sample on the test fixture of the testing machine, bend the toe part of the test shoe at a certain angle and speed, and simulate the walking state of human feet wearing shoes to measure the shoes. of water resistance.

Standards:

The design of this instrument meets the requirements of SATRA TM230-2002 standard.

Specification:

Number of test samples	two groups



Bending angle	0-90° adjustable
Bending speed	0-60±1 times/min
Counter	touch screen control, 0-99999999
Size (WDH)	1150×700×800mm
Power supply	AC～220V 50HZ
Weight	about 60kg
