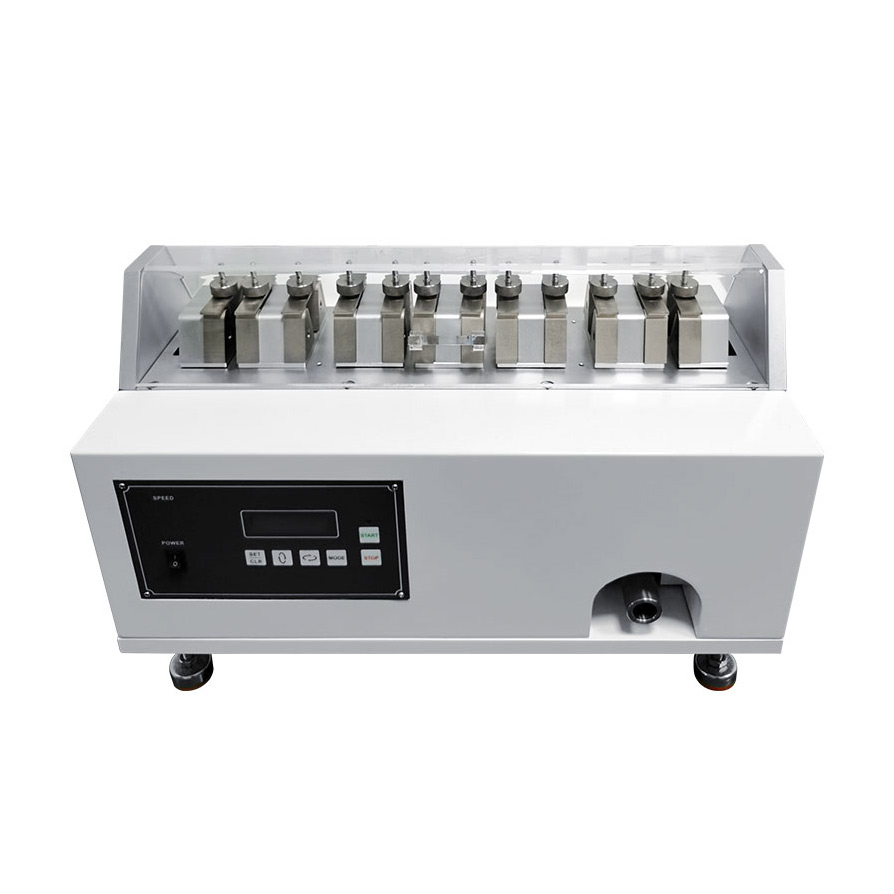

XD-F249 Upper Material Flexing Tester Shoe Material Testing Equipment
This machine simulates that during the walking process of shoes, different parts of the upper leather will be subjected to forces such as stretching, squeezing, bending, etc
Product Description:
This machine simulates that during the walking process of shoes, different parts of the upper leather will be subjected to forces such as stretching, squeezing, bending, etc., causing scratches, wrinkles or damage to the shoe material. This machine is simulating this test, as Reference for quality improvement or purchase of shoe upper materials
Standards:
ISO 5423, 4643, SATRA TM25, EN ISO 20344, GB/T 20991
Specification:
Telescopic distance | 19±0.5mm |
Telescopic speed | 300±30cpm |
Specimen size | 64×64mm |
Number of test pieces | 12pcs |
Fixture | 40°V-shape V-shape 6.4mm(R) |
Counter | 6-digit LCD digital display |
| Size (W*D*H) | 55×35×30cm |
| Weight | about 60kg |
| Power supply | AC～220 50HZ |
