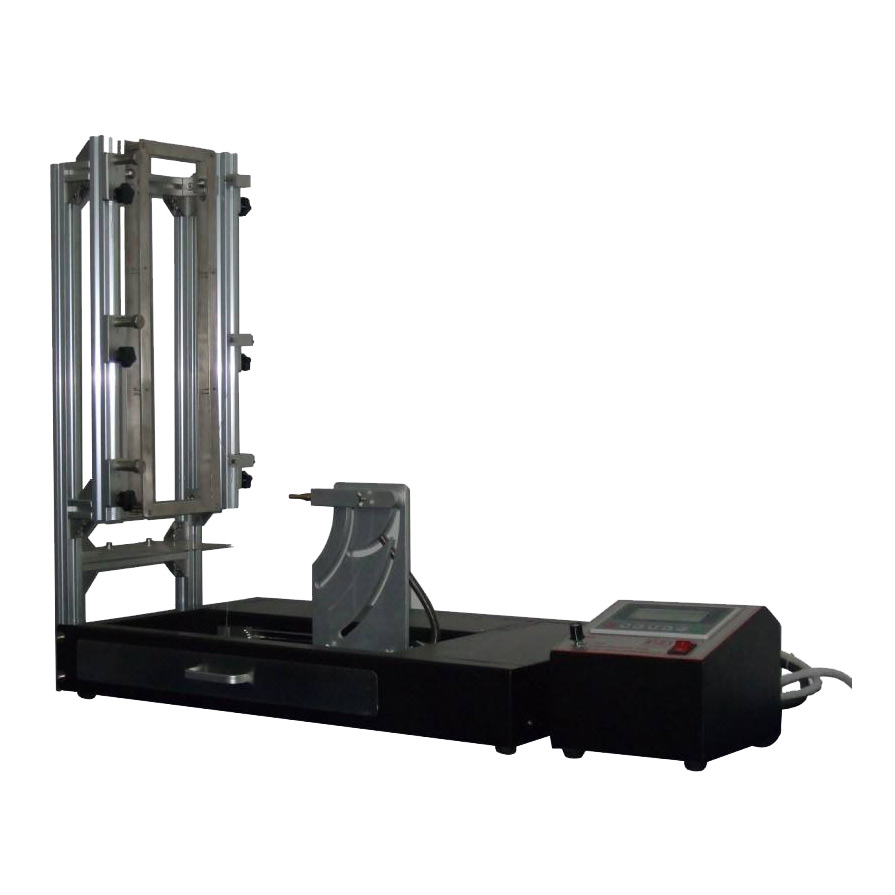

Applicable to the determination of the vertical flame spread properties of single-component or multi-component (coating, quilting, multi-layer, sandwich products and similar combinations) garments, curtain draperies and textiles for large tents including pergolas and door covers;

It is suitable for burning time determination of textile fabrics with fluff (such as pile, loop, tufted or similar surfaces) on the surface;

Applicable to the test of the flammability in the vertical direction of fabrics of various types of single layer or multi-layer (such as coating, quilting, interlayer and similar combination);

Test results can only be used to assess the flammability of materials or combinations of materials under laboratory controlled conditions. The test results are not applicable to the occasions where the oxygen supply is insufficient or the heating time is too long in the fire. ;

Working principle:

Install the finished sample or material sample on the corresponding fixture of the instrument, burn the sample with the required flame for a certain period of time, and record the relevant data (such as burning time, burning rate) to evaluate its burning performance.

Accessories:

sampling plate, fixture, flame height gauge

Standards:

BS 5438, BS EN 532, 533, BS EN 1103, BS EN ISO 6940, 15025, EN ISO 6941, EN71, ISO 10047, DIN 53438, GB/T 5456, GB/T 5456, 8745, GB/T 8746

Technical parameter:

Ignition time set range	0~99.99s
Flame timing range	0~999.9s
Ignition fire mouth	According to ISO 6941
Fire Mouth angle	0°/30°/90° adjustable with the horizontal
Flame Measurement Height	20mm/40mm
U-shaped fixture inner frame	80mmx600mm
U-shaped fixture marking line position	adjustable
Combustion gas	butane gas
Volume (WxDxH)	80x55x66cm
Weight	≈45Kg
Power supply	1∮ AC 220V 50Hz
