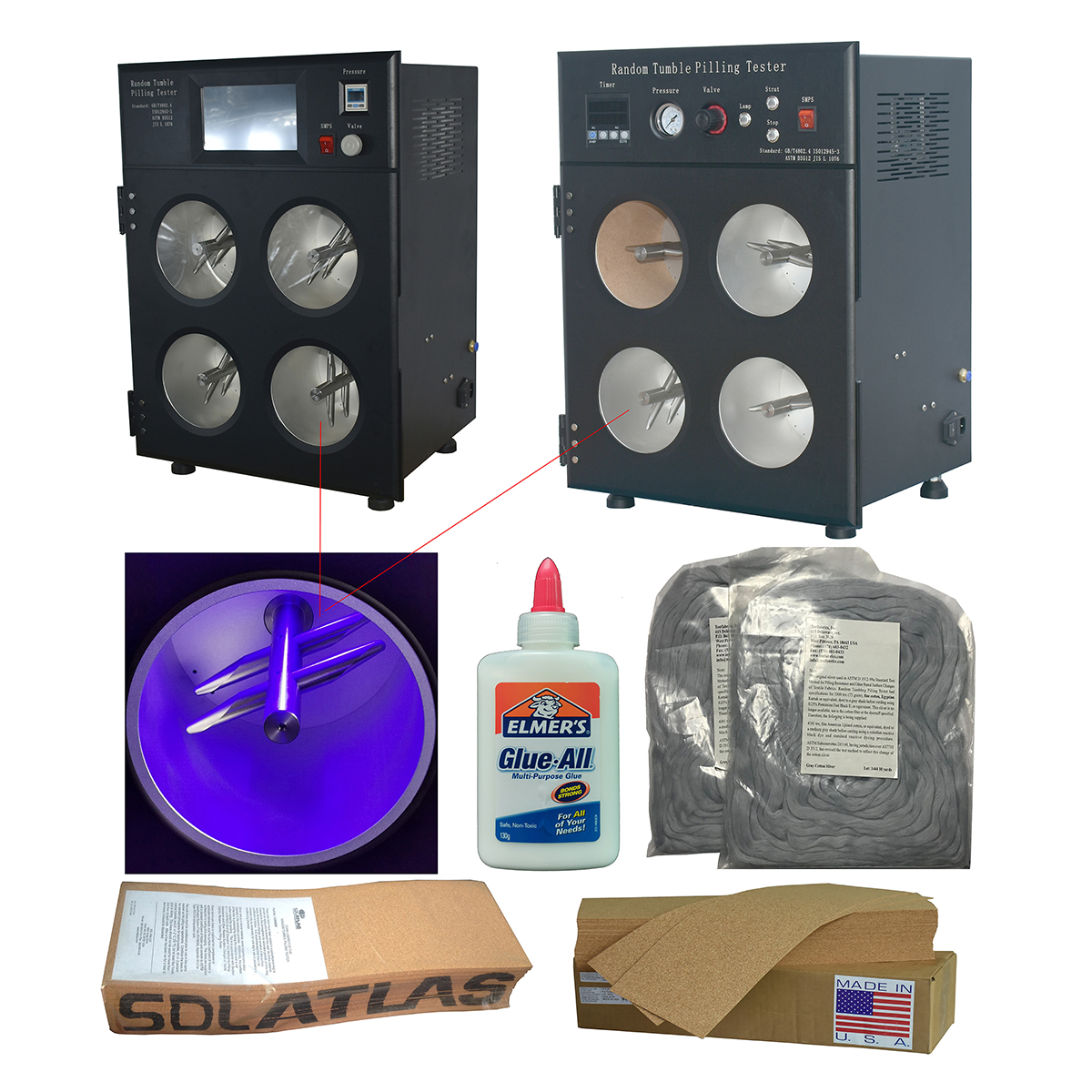

XD-B14 Random Tumble Textile Pilling Lab Testing Tester
This instrument is suitable for judging the resistance of fabrics to pilling and other surface defects, such as hairiness, and is suitable for various types of clothing fabrics. This instrument is not suitable for testing fabrics with silicone resin finishes (such as durable rain and soft finishes) because the silicone will transfer to the cork backing and affect the test results.
Introduction:
This instrument is suitable for judging the resistance of fabrics to pilling and other surface defects, such as hairiness, and is suitable for various types of clothing fabrics. This instrument is not suitable for testing fabrics with silicone resin finishes (such as durable rain and soft finishes) because the silicone will transfer to the cork backing and affect the test results.
Working principle:
In order to imitate the friction effect in wearing, the sample and a small amount of gray short cotton fibers were added to the cylindrical test box and cork liner and rubbed against each other. The test results were compared with the standard samples and rated subjectively. Check the pilling condition on the surface of the sample to evaluate the pilling resistance of the sample and serve as a reference for improving the fabric technology.
Standard:
ASTM D3512 and JIS L1076 manufacture.
Technical parameter:
| Number of test tubes | 2/4 |
| Drum specifications | diameter 146mm, depth 152mm |
| Test speed | 1200r/min |
| Sample | 105mmx105mm,3 pieces/tube |
| the cork lining Specifications | 452x146x1.5mm |
| Size(WxDxH) | 460×36x63cm |
| Weight (Kg) | ≈58Kg |
| Power supply | 1∮ AC 220V 5A |
To buy consumables:
Gray cotton sliver: 25mg (about 5mm in length), 4301tex, high-quality American mountain cotton or cotton of the same specification, cork liner 452x146x1.5mm, white latex, rating light box, rating chart, vacuum cleaner, air compressor (other purchased) or customer-provided gas source
Accessories: Wood lining wall (50 pieces/pack); Cotton sliver (9m); Standard comparison picture card (5 pieces/set)
Previous : XD-B13 Fabric Textile Ici Mace Snagging Resistance Tester
Next : XD-B15 Ici Pilling and Snagging Tester
