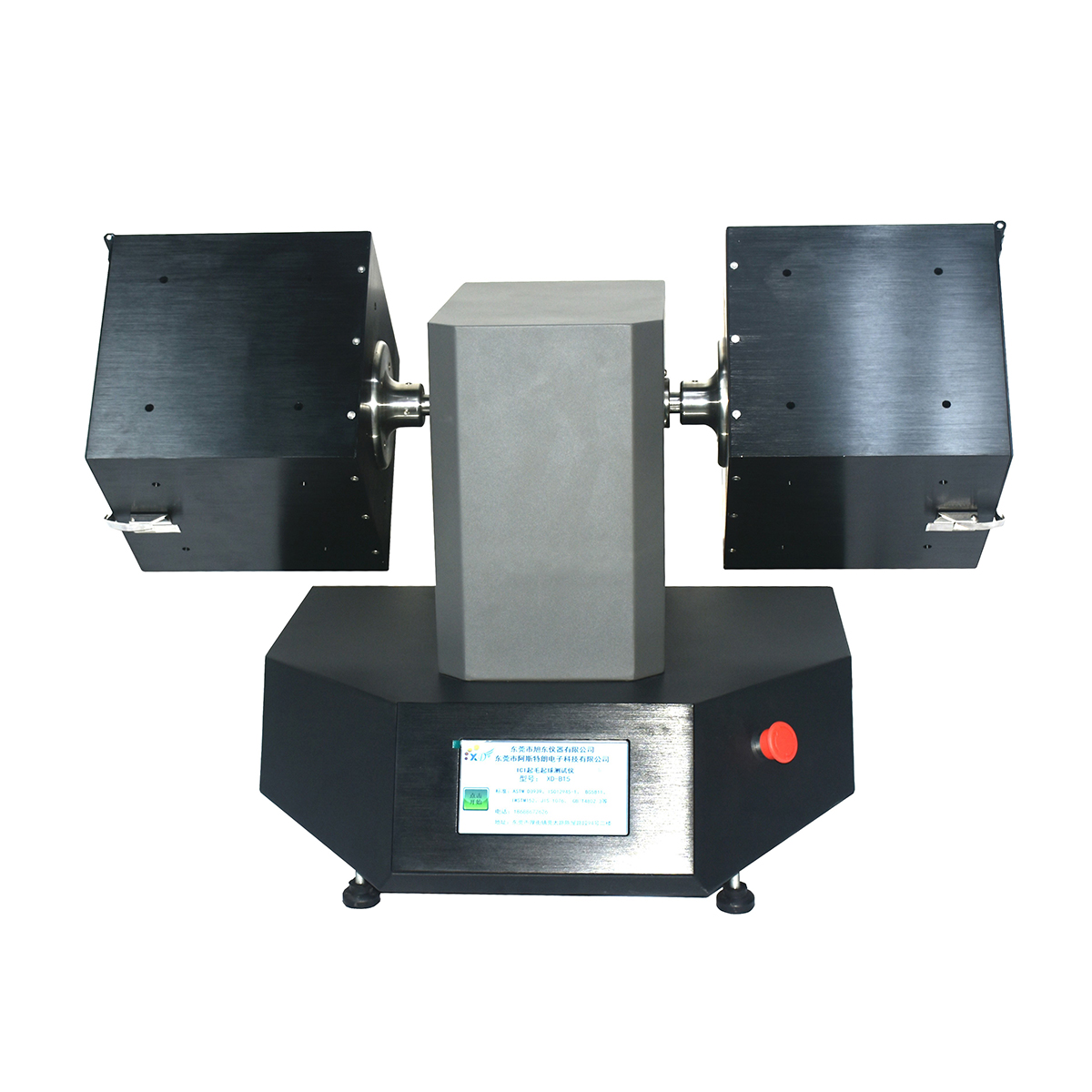

XD-B15 Ici Pilling and Snagging Tester
This tester is suitable for detecting the pilling and pilling phenomenon caused by friction on the surface of the fabric under the condition of no pressure. It is suitable for woven and knitted fabrics. The ICI pilling tester is a general-purpose pilling test system with 2 or 4 test boxes, which can quickly simulate the pilling of fabrics within a certain period of time under normal wearing conditions. Electronic drive device, electronic digital counter and sample loading device.
Product introduction:
This tester is suitable for detecting the pilling and pilling phenomenon caused by friction on the surface of the fabric under the condition of no pressure. It is suitable for woven and knitted fabrics. The ICI pilling tester is a general-purpose pilling test system with 2 or 4 test boxes, which can quickly simulate the pilling of fabrics within a certain period of time under normal wearing conditions. Electronic drive device, electronic digital counter and sample loading device.
Working principle:
The tester puts the sample on the polyurethane hose, and then rolls it in a rotatable cube test box with cork liner for a certain number of times, and evaluates the level of pilling according to the rating chart, which is used for improving fabric dyeing. in accordance with.
Standards:
ASTM D3939, ISO 12945-1, BS5811, IWSTM152, JIS L 1076, GB/T4802.3, ISO12945-1, Marks & Spencer P18A
Accessories: movable cork liner (6/set); PU solid sample tube (4/set); solid sample kit; standard chart
Technical parameter:
| Number of Pilling Boxes | 2 boxes/4 boxes |
| Specimen | 125mmx125mm, four |
| Size of Test Specimen | outer diameter 31.5±1mm, thickness 3.2±0.5mm, length 140±1mm |
| Sample casing weight | 52.25±1g |
| Cork liner thickness | 3.2mm |
| Internal dimensions of | 235mm before lining |
| the test box | |
| Speed | 60±2rpm |
| Test box size | 235×235×235mm |
| Dimensions | 875×430×350mm (L×W×H) |
| Power supply | 1∮，AC220V，3A |
| Weight | 60Kg |
