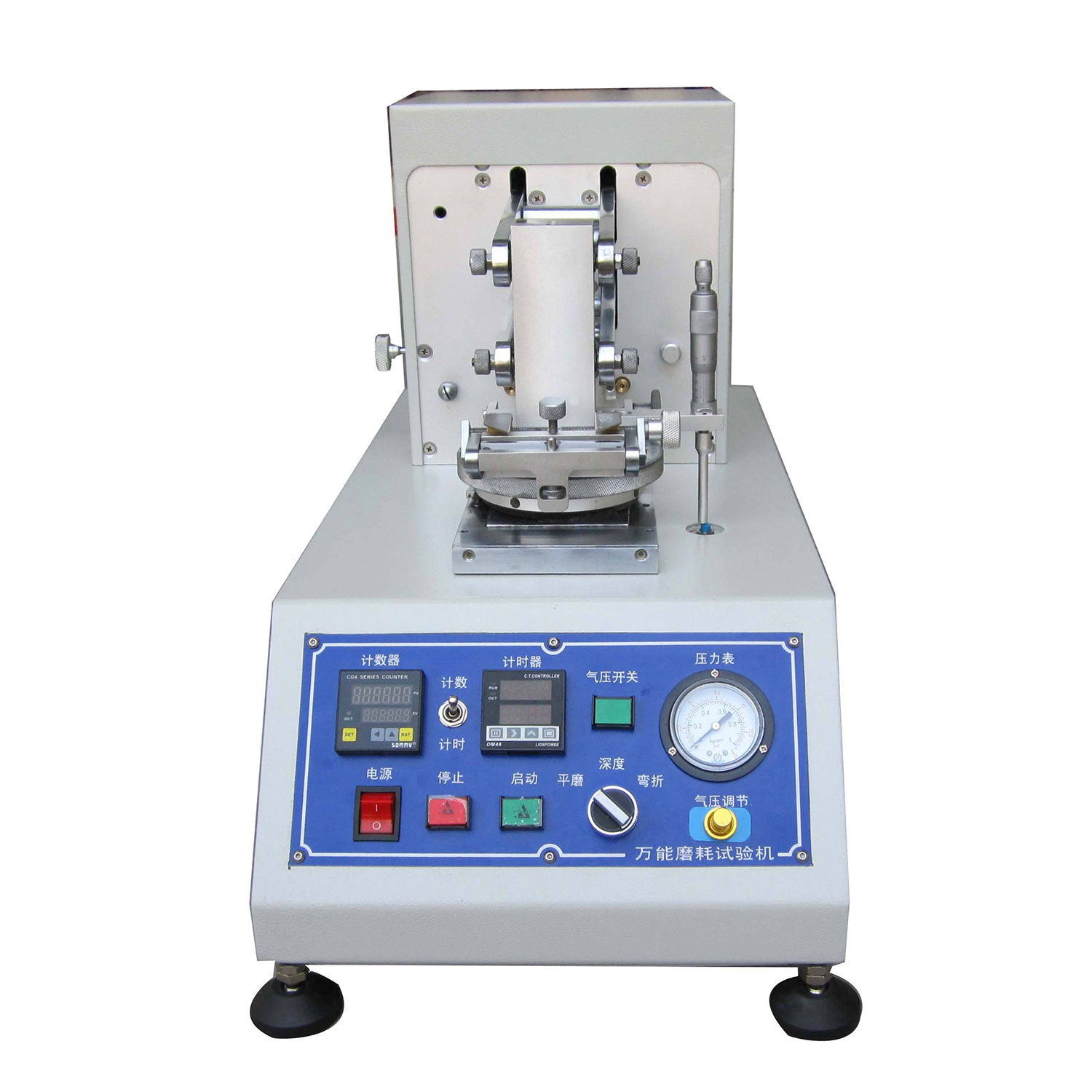

XD-B19 Universal Wear Tester Stoll Abrasion Tester Stoll Quartermaster Footwear Universal Wear Tester
This instrument can detect the wear properties of all kinds of fabrics, including clothing, shoes and industrial textiles, flat wear discoloration properties, and surface anti-pilling properties.
This tester is suitable for testing the abrasion resistance of textiles in various ways (such as flexural method, film expansion method, etc.).
This tester is suitable for testing the discoloration of textiles by flat abrasion (such as wire mesh method, emery method).
This tester is suitable for testing
Product description:
This instrument can detect the wear properties of all kinds of fabrics, including clothing, shoes and industrial textiles, flat wear discoloration properties, and surface anti-pilling properties.
This tester is suitable for testing the abrasion resistance of textiles in various ways (such as flexural method, film expansion method, etc.).
This tester is suitable for testing the discoloration of textiles by flat abrasion (such as wire mesh method, emery method).
This tester is suitable for testing the surface anti-pilling properties of textiles.
Working principle:
Install the sample and abrasive on the fixture on the instrument, load the specified load, test the sample at the specified stroke and speed, check the wear condition of the sample after a certain number of tests, or test when the sample is worn out (wear through ), to evaluate the abrasion resistance and surface pilling of the sample, as a reference for improving the fabric technology.
Install the sample on the fixture of the instrument, load the specified load, and use standard abrasives (such as wire mesh, emery, etc.) to rub the sample for a certain number of times at the specified stroke and speed to check its discoloration.
Compliant with standards: AATCC 119, 120, ASTM D3514, 3885, 3886, JIS L1096
Technical parameter:
| Table stoke | 25.4mm (1 In) |
| Test speed | 120r/min |
| Tension weight | 0.5Lb(2pcs), 1Lb(2pcs), 2Lb(1pc) |
| Head weight | 0.5Lb(2pcs), 1Lb(2pcs), 2Lb(1pc) |
| Lower clamp rotation speed | about 100 times/circle |
| Counting | 0~999 999 times can be set |
| Timing | 0~9 999min |
| Size (WxDxH) | 34x66x47cm |
| Weight(Kg) | ≈80Kg |
| Power supply | 1∮ AC 220V 5A |
| Accessories | like film, flat wear frost change fixture, film expansion fixture, deflection friction fixture, folding wear fixture, wear depth gauge, tension weight, pressure weight |
| Auxiliary tools | wrench, plate rod |
| OPTIONAL | Abrasive "320J" 50 yd/roll for ASTM D3514 3 rating chart |
