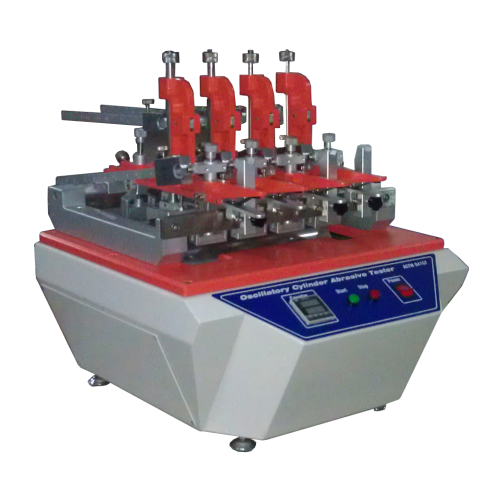

XD-B23 Wyzenbeek Abrasion Tester Abrasion Tester ASTM D4157 Wyzenbeek Abrasion Tester
This tester is suitable for testing the abrasion resistance of fabric/leather/imitation leather, providing a reference for improving fabrics.
Product introduction:
This tester is suitable for testing the abrasion resistance of fabric/leather/imitation leather, providing a reference for improving fabrics.
Working principle:
Install the strip-shaped sample fabric on the front and rear fixtures of the friction head and apply a certain tension force, install the friction medium on the arc-shaped friction table, make the sample contact the friction medium and apply a certain load to the sample superior. The friction table swings back and forth to rub the sample, and after a certain number of frictions, the change of the fracture strength of the sample is evaluated.
Accessories: wire mesh (sold separately)
Auxiliary tools:
#10 cotton cloth (sold separately): mass per unit area 500±25g/m^2, plain weave, fabric density 41±1end/in*28±1pick/in
Sandpaper (purchased separately): 50#, for grinding the rubber friction head Vacuum cleaner (purchased separately) Tensile strength testing machine (purchased separately)
Standards Compliant:
ASTM D4157, BS EN ISO 12402-7, FTMS 191A 5304
Technical parameter:
| Test Stations | 4 |
| Testing Speed | 90±1 r/min |
| Friction table | arc surface: R80mm, length: 300mm |
| Friction stroke | arc length 76±2mm |
| Friction head | bottom rubber indenter, 50x50mm, arc surface R80mm |
| Specimen Tension Force | 4 lbf (17.8N), adjustable |
| Tension adjust weights weight | 340g |
| Sample Load | 3 lbf (13.4N), adjustable |
| Load regulation weights weight | 150g |
| Specimen Dimension | 73mmx245mm |
| Number of Specimen | 12 pieces, 6 pieces each in the warp and weft directions |
| Vacuum cleaner | ≤4cfm |
| Size (WxDxH) | 50x70x55cm |
| Weight | ≈60Kg |
| Power supply | 1∮ AC 220V 50Hz 3A |
