XD-B27 Automatic Textile Fabric Wet Resistance Test Machine

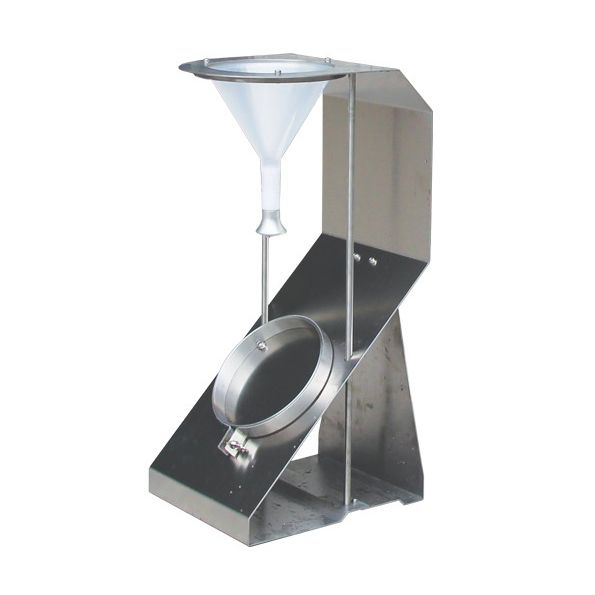

The machine evaluates the water repellency (resistance to getting wet by water) of the fabric surface. The instrument is an all-metal frame. The sample is placed at a 45-degree angle at a certain distance directly below the nozzle, and a certain amount of distilled water is sprayed on the surface of the sample 150mm below the nozzle through a standard nozzle at 45° to produce a wet sample. Comparing the wet sample to the graph on the standard chart gives the wettability of the sample.
Optional:
Product Description:
The machine evaluates the water repellency (resistance to getting wet by water) of the fabric surface. The instrument is an all-metal frame. The sample is placed at a 45-degree angle at a certain distance directly below the nozzle, and a certain amount of distilled water is sprayed on the surface of the sample 150mm below the nozzle through a standard nozzle at 45° to produce a wet sample. Comparing the wet sample to the graph on the standard chart gives the wettability of the sample.
Optional: Standard Rating Chart
Standards:
ISO 4920 BS EN 24920 BS 3702 AATCC 22 M&S P23 NEXT 23
Technical parameter:
| The nozzle tothe specimencenter distance | 150mm |
| Test water consumption | 250ml |
| 250mlwater spraytime | 25~30s |
| Specimen angle | 45 degrees |
| Volume (WxDxH) | 20x25x48cm |
| Weight (approx.) | ≈5.5Kg |
| Measuring cup | 250 ml |
| Weight | 8kg |
