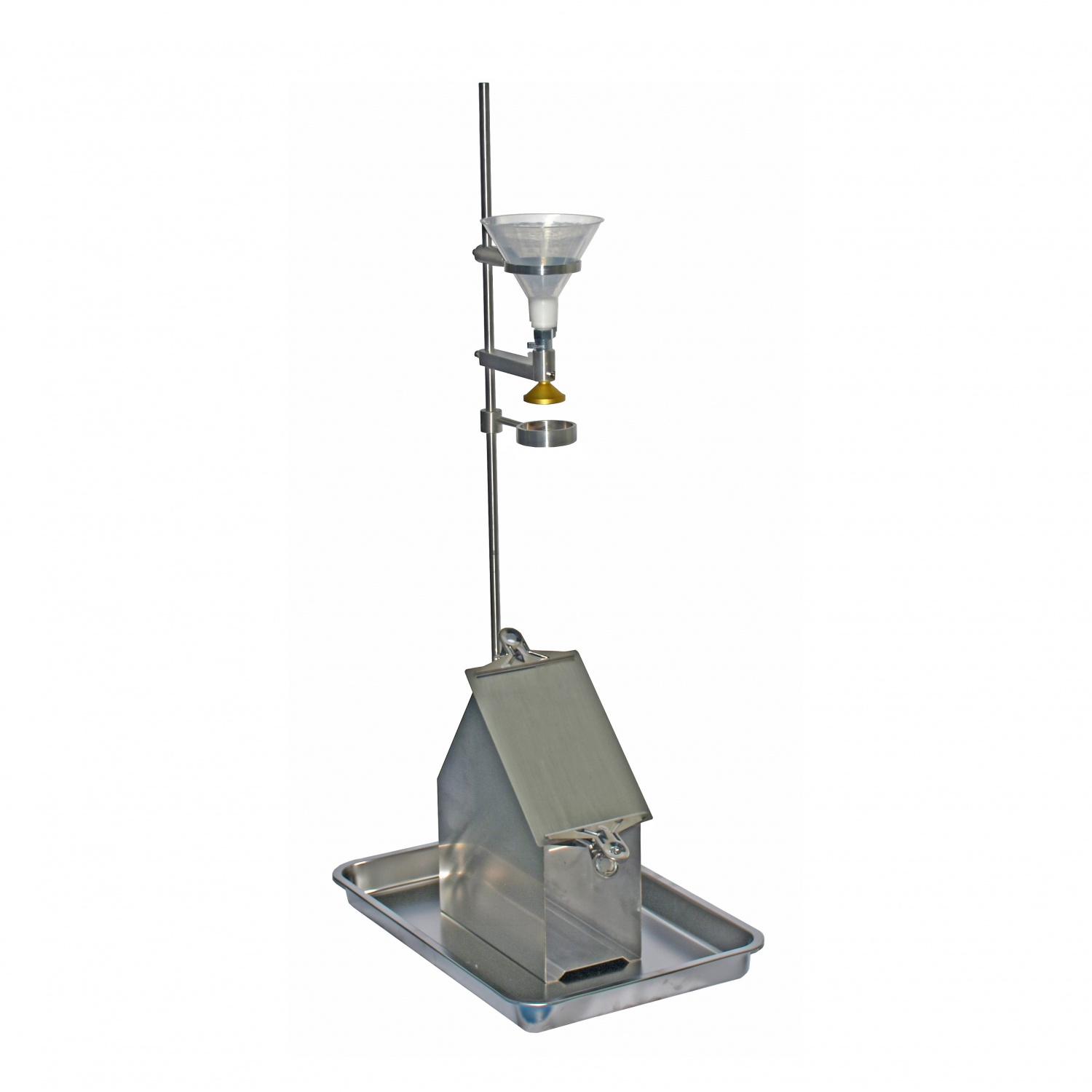

XD-B27B Fabric Low Impact Resistance Rain Penetration Tester
It is used to measure the water resistance of fabrics under low impact conditions, so as to predict the rain resistance of fabrics.
Scope of application:
It is used to measure the water resistance of fabrics under low impact conditions, so as to predict the rain resistance of fabrics.
Standards:AATCC42 ISO18695 GB/T33732 GB/T24218.17, etc.
Technical parameter:
| Impact height | (610±10) mm |
| Funnel diameter | 152 mm |
| Number of nozzle holes | 25 |
| Nozzle aperture | 45° from the horizontal |
| Matching measuring cup | 500ml |
| Sample size | (178±10)mm×(330±10)mm |
| Tension spring clip | (0.45±0.05)kg |
| Dimensions | 500mm(L)×600mm(W)×850mm(H) |
| Weight | about 15kg |
