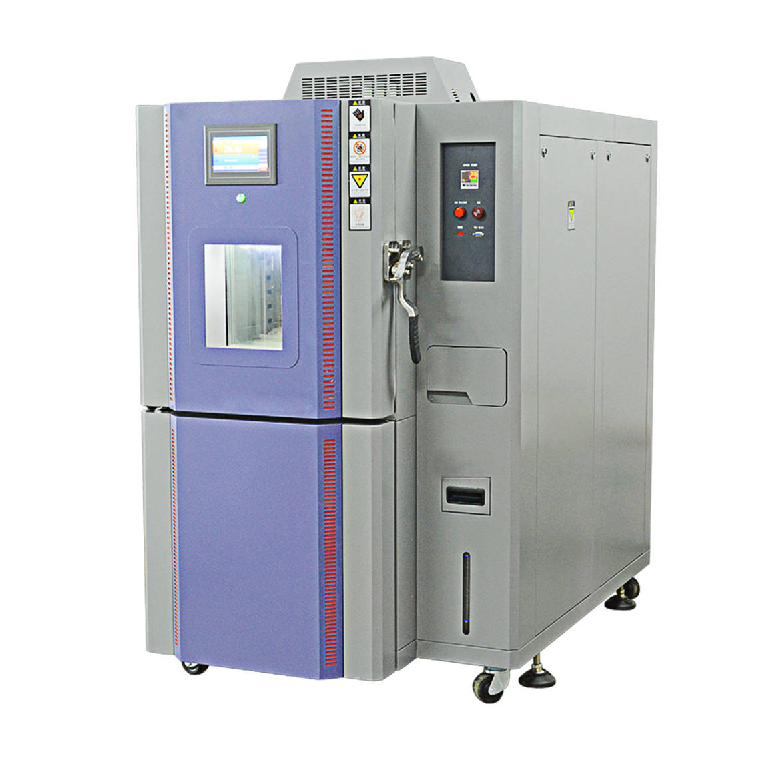

XD-D05 Laboratory High Precision Rapid-Rate Temperature Change Testing Chamber
This equipment is suitable for all kinds of automotive parts, electrical and electronic products and other products, parts and materials to conduct environmental simulation reliability tests such as high and low temperature constant and gradual change, sudden change, alternating, damp heat test.
Scope of application:
This equipment is suitable for all kinds of automotive parts, electrical and electronic products and other products, parts and materials to conduct environmental simulation reliability tests such as high and low temperature constant and gradual change, sudden change, alternating, damp heat test.
Technical parameter:
Test Conditions Equipment approx | ambient temperature | 5～30℃ |
environment humidity | 20%~98% | |
Cooling water | Inlet water temperature≤30℃, water supply pressure 0.3MPa | |
sample weight | 20kg | |
temperature index | extreme temperature range | -70°C～+150°C (full controllable, adjustable control accuracy ±0.1°C) |
temperature overshoot | ≤±2℃（within 100℃） | |
temperature stability | ≤±0.5℃ | |
temperature deviation | ≤±2℃ | |
temperature uniformity | ≤±2℃ | |
Rapid temperature range | -55°C～+100°C 100°C～-55°C Temperature rise and fall ≥15°C/min (average) | |
Temperature index (optional) | Humidity range | 20％RH～98％RH(The whole process is controllable, and the adjustable control accuracy is ±0.1RH%) |
Humidity Fluctuation | ≤±2.0％RH (After the humidity is stable, the size of the humidity change at any point in the test box within the specified time) | |
Humidity uniformity | ≤±2.0％RH | |
Relative Humidity Deviation | ＞75％RH时，≤+2～-3％RH；≤75％RH时，≤±5％；(After the humidity is stable, at any time, the difference between the highest humidity, the lowest humidity and the nominal humidity) | |
Verification standard：GB/T 5170.2-2008 | ||
Noise index | ≤75dB（3-meter measuring point around the environmental chamber unit） | |
weight | 800KG | |
Inner box size | W700mm*H700mm*D700mm | |
Carton size | W16000*H2150*D2100mm Without motor height | |
Maximum power | ≤55KW（AC 380V±10%、50Hz，Three-phase five-wire system） | |
