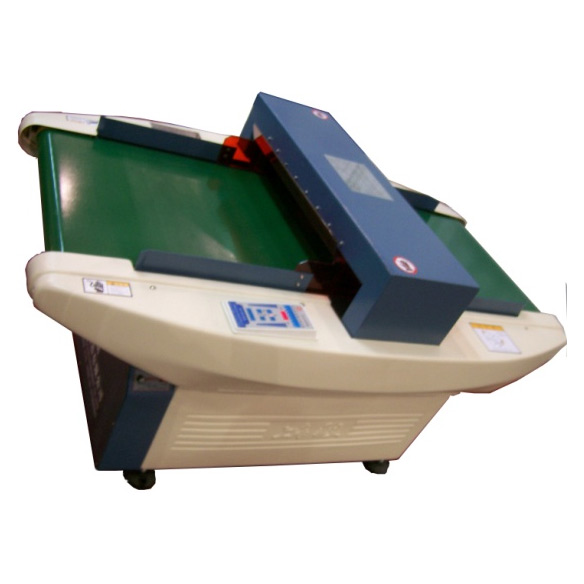

XD-B40 Broken Needle Detector for Garments, Textile
It can detect whether there are objects with metal components in finished products such as toys, clothing and food, and can also detect objects as small as needles. It is an indispensable instrument for product safety inspection.
Introduction:
It can detect whether there are objects with metal components in finished products such as toys, clothing and food, and can also detect objects as small as needles. It is an indispensable instrument for product safety inspection.
1. Using high-performance computer processing chips from American silicon, fully digital design, large-scale high-precision silk-meter-level SMT patches. Taiwan FOTEK (Yangming) sensor. Japan Panasonic (Panasonic) motor. Swiss Habasit (Habasit) conveyor belt.
2. The original magnetic field equalization induction design is more suitable for the needs of different customers. Especially for the detection of clothing accessories.
3. The special induction design of the detection part greatly improves the sensitivity and anti-interference ability of the instrument, breaking the limitation of being affected by the environment.
4. Humanized design, LCD display, simple and clear operation.
5. Innovatively designed sensitivity marker light setting, conveyor belt return or stop.
8. A variety of working modes, thin material (auxiliary material), thick material (finished product) can be adapted.
9. Set up three-speed safety lock, no lock, low-level security and high-level security, reliable management.
10. Correct count and precise position display, built-in environmentally friendly automatic shutdown mode.
Technical parameter:
| Model | Standard | Dual Sensor |
| Sensor height | 100 mm；120mm；150mm；200mm select | 100 mm；150mm；200mm select |
| Detection range | 600mm（width)×100mm（height） | 600mm（width)×100mmheight） |
| Detection sensitivity | FeΦ0.68-0.8mm adjustable | FeΦ0.8mm |
| Size | 1820×1000×900mm（L×W×H） | 2350×1100×1000mm（L×W×H） |
| Power | 1∮，AC220V ，2A | 1∮，AC220V ，3A |
| Weight | 200 kg | 300 kg |
