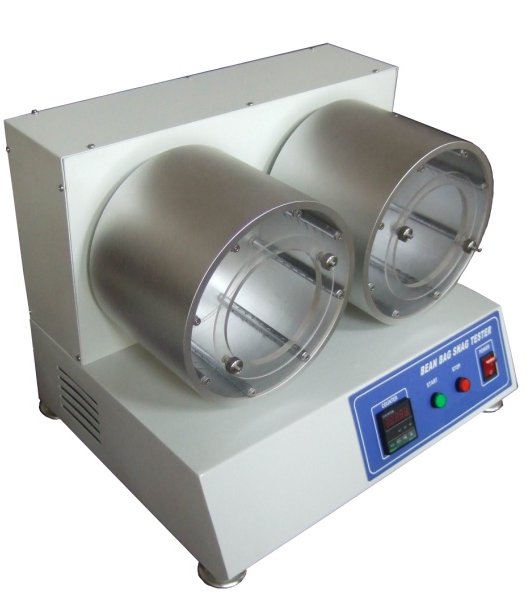

XD-B42 Fabric Snagging Test Bean Bag Snag Tester
This tester is suitable for testing outerwear knitted and woven fabrics and other fabrics that are easy to snag, especially for the snagging properties of chemical fiber filaments and textured yarn fabrics.
Product introduction:
This tester is suitable for testing outerwear knitted and woven fabrics and other fabrics that are easy to snag, especially for the snagging properties of chemical fiber filaments and textured yarn fabrics. In two separate test cylinders (8 needle bars in each), knitted fabrics, bead pillows (of known weight) are turned over with the rotation of the cylinders at 20rpm/100 revolutions, with predetermined electronic counter.
Working principle:
Put a chain-suspended hammer around the guide rod and put it on the surface of the sample sleeved on the rotating drum. After the rotating drum rotates for a certain number of times at a constant speed, take off the sample and compare it with the rating chart in the rating box. .
Standard accessories:
sampling plate 115x215mm, bead pillow x2
Optional Accessories:
Rating Chart
Technical parameter:
| Rotation Speed: | 60±2 r/min |
| Test tube: | outer diameter 82mm, length 210mm |
| Bead pillow: | weight 450±10g/pc |
| Nail rod: | 8mm outer diameter, 127mm length, 9 nails / nail rod |
| Nail: | The protruding length is 10mm, the spacing is 12mm, and the angle with the vertical direction: 30±5° |
| Specimen size: | 215x115mm |
| Volume (WxDxH): | 47x38x38cm |
| Rotation setting range: | 0-999r |
| Number of test rollers: | 2/4 |
| Drum diameter: | ￠200mm |
| Number of needle bars: | 8/roller |
| Number of needles: | 9/needle bar |
| Dimensions: | 800X450X550mm |
| Power supply: | AC220V 50Hz |
| Weight: | 45Kg |
