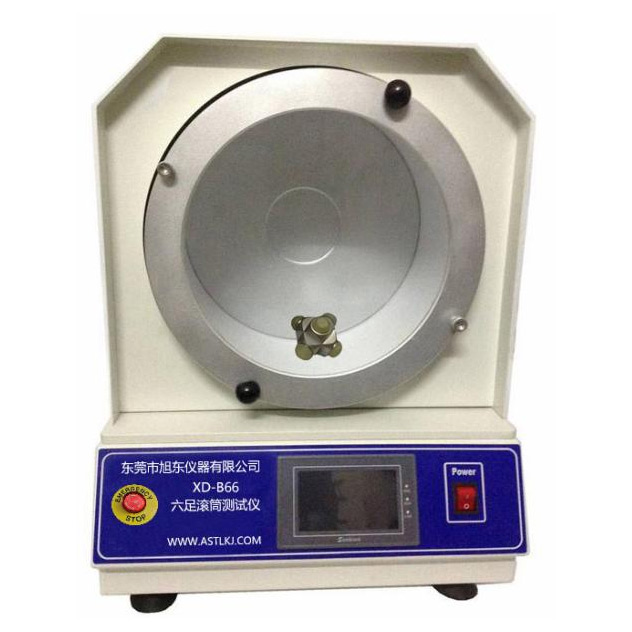

Under the action of the mechanical method of the hexapod roller drop tester, the appearance changes of the carpet samples (the changes in the structure of the carpet surface and the changes in color) are evaluated according to the relevant standards.

Technical parameter:

Control mode:	PLC program control, touch screen display
Standard hexapod:	weight 3800 g±100 g, stud diameter 40 mm±1 mm, stud height 15 mm±1 mm, steel back thickness 3 mm±0.25 mm
Drum:	inner diameter 305 mm±1 mm, effective depth 200 mm±1 mm, wall thickness about 8 mm
Drum speed:	35 r/min±2 r/min
Rotation commutation frequency:	every 15 min
Transmission mode:	electric
Power supply:	AC 220V, 50 Hz, 400 W
Weight:	50 kg
Dimensions:	45×45×50 cm

According to the standard:

GB/T 26844-2011, ISO 10361, GB/T 26845, ISO 9405, BS EN 1471, ASTM, etc.
