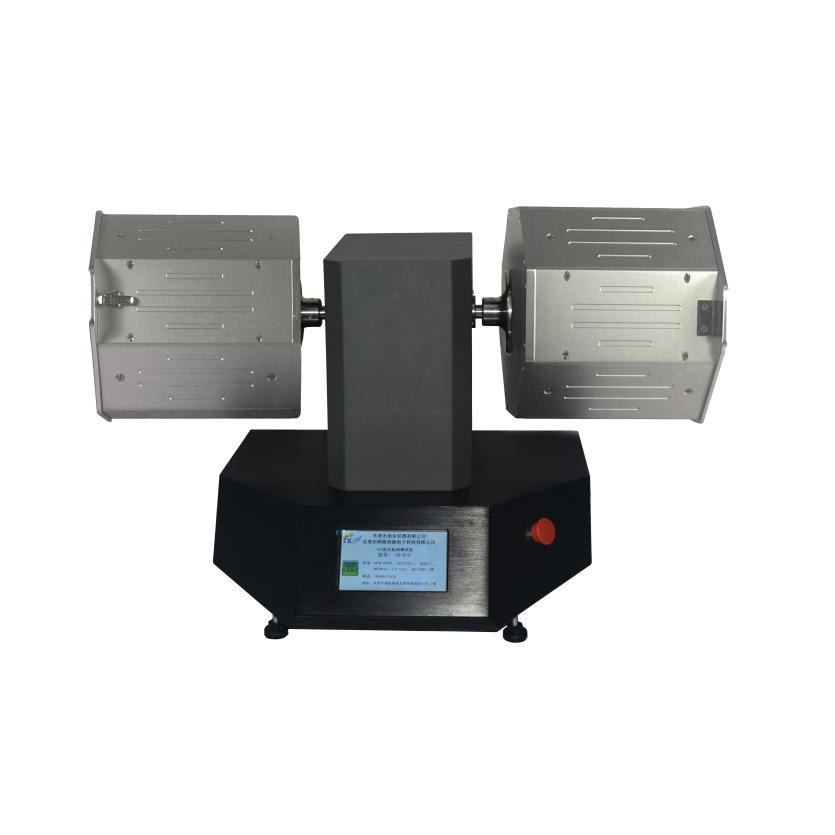

XD-B62 BS8479 Ici Pilling and Snagging Tester
The tester puts the sample on the polyurethane hose, and then rolls it in the rotatable octagonal test box for a certain number of times, and evaluates the hooking level according to the rating chart.
Working principle:
The tester puts the sample on the polyurethane hose, and then rolls it in the rotatable octagonal test box for a certain number of times, and evaluates the hooking level according to the rating chart.
Instrument Description: This tester is suitable for detecting the thread snagging phenomenon caused by the surface of the fabric without pressure. It is suitable for woven and knitted fabrics.
According to the standard:
BS 8479, etc.
Technical parameter:
| Test station: | 2 stations |
Specimen size: | 140mmx140mm |
| Test speed: | 60±2r/min |
| Test box: | octagon, width 224.5mm across side, depth 228mm |
| Number of nail rods: | 4 pieces/box |
| Test nails: | 20 / nail rod, diameter 1mm, inclination angle 60°, exposed length 5mm |
| Sample casing (sold separately): | inner diameter 25±1mm, thickness 3±0.5mm, length 70±1mm |
| Counting: | 0~999999 times (can be set) |
| Control mode: | touch screen control |
| Volume (WxDxH): | 76x45x50cm |
| Weight (Kg): | about 56Kg |
| Power supply: | 220V 50Hz |
