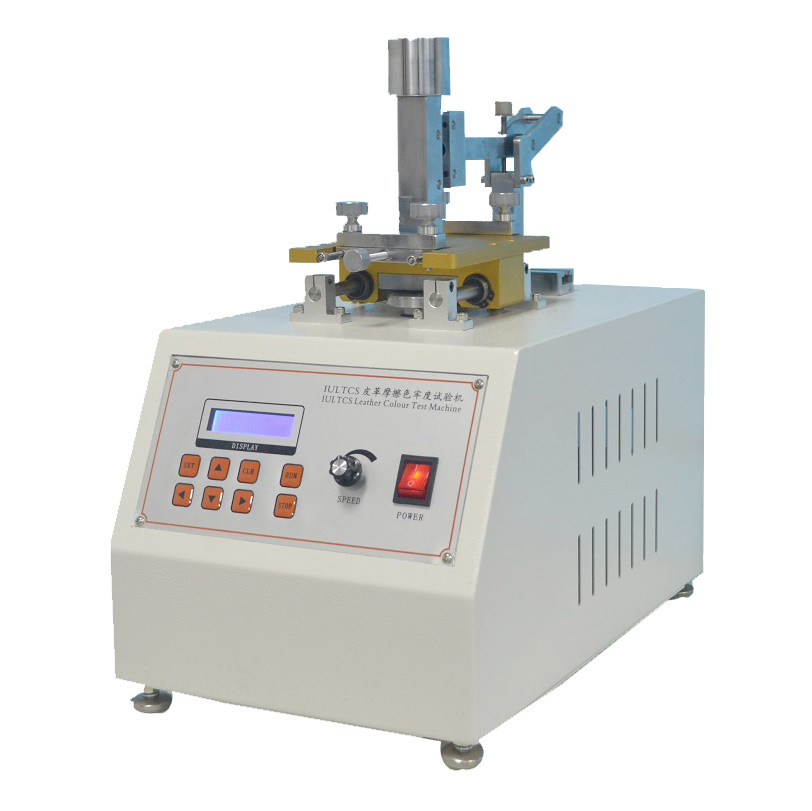

Leather Rubbing Tester Abrasive Rubbing Fastness Tester Leather Rubbing Color Fastness Test Machine Iultcs Rub Fastness Tester Iultcs Veslic Leather Abrasive Te
The machine tests the dyed shoe upper and inner lining leather, the damage and discoloration degree after rubbing.
Introduction:
The machine tests the dyed shoe upper and inner lining leather, the damage and discoloration degree after rubbing. The test method is to wrap dry or wet white wool felt on the friction surface, and then rub the test piece clamped on the test bench back and forth. Both dry and wet friction tests can be done. The test method is to wrap a dry or wet standard white cloth on the surface of the friction hammer, and then reciprocate the friction and clamp it on the test bench. With power-off memory function
Compliant with standards:
ISO-11640, QB/T2537-2001
Specifications:
| test station | One or more test stations are optional, and can also be customized according to customer needs |
| Friction hammer load | 500g |
| Auxiliary load | 500g |
| Friction distance | 35mm ~40mm |
| Friction speed | 40±2 rpm |
| Test piece area | 120×120mm |
| Wool felt area | 15×15mm |
| Weight load | 5N， 1 each 9N |
| Counter | LCD，0~999,999 |
| Dimensions | 460×280×480mm |
| Weight | About 40kg |
| Power supply | 1∮,AC220V,2A |
