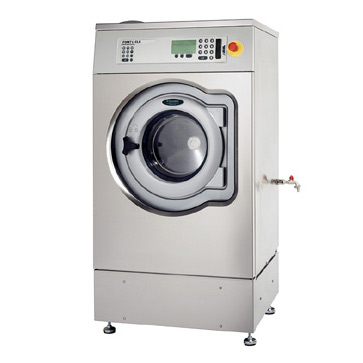

XD-C18 Fabric Shrinkage Tester Lab Wascator Washing Testing Instrument
This machine is used to test the dimensional stability of fabrics or garments after washing, and to evaluate the effect of detergents or other chemical reagents. It is also designated as a reference machine in washing machine manufacturers or R&D institutions.
Introduction:
This machine is used to test the dimensional stability of fabrics or garments after washing, and to evaluate the effect of detergents or other chemical reagents. It is also designated as a reference machine in washing machine manufacturers or R&D institutions.
Compliant with standards:
ISO 5077, 6330; IEC 60456; BS EN25077, 26330; BS4923, 5807; IWSTM31; M&S P1,P1A, P3A, P12, P91, P99, P99A, P134; GB/T8629
Product Features:
1. The design of the suspended drum can perform forced dehydration
2. The inlet and outlet space is small, but the water and detergent are fully utilized
3. Dual control of volume and water level
4. The built-in water level control can improve the accuracy
Volume control accuracy ±0.2L/bath
Water level control accuracy ±0.8L/bath
5. With CLARUS control-full program electronic timer
6, with ISO 6330 specification program card
7. The frequency controller motor system makes the degree flexible and the speed accurate
8. The panel and parts of the machine are made of stainless steel
9. Optional accessories package can be used with OPTI-DRY tumble dryer for stability test
Technical parameter:
| Water temperature: | cold water: 15±260°C |
| Hot water: | maximum (60±2) 60°C |
| Water pressure: | (240±50) kpa |
| Ambient temperature: | (20±5)°C |
| Water volume control accuracy: | ±0.2L |
| Water level control accuracy: | ±0.8 L |
| Inner drum diameter: | 520mm |
| The inner drum depth: | 315mm |
| Inner drum volume: | 61L |
| Outer cylinder diameter: | 554mm |
| Water accumulation in the outer drum: | (1800±5)ml |
| Outer drum material: | stainless steel |
| Machine size: | 720×690×1315 mm |
| Volume: | 0.85m2 |
| Net weight: | 184Kg |
| Gross weight: | 203Kg (transportation weight) |
| Power requirements: | 3-phase 380VAC, 32A |
