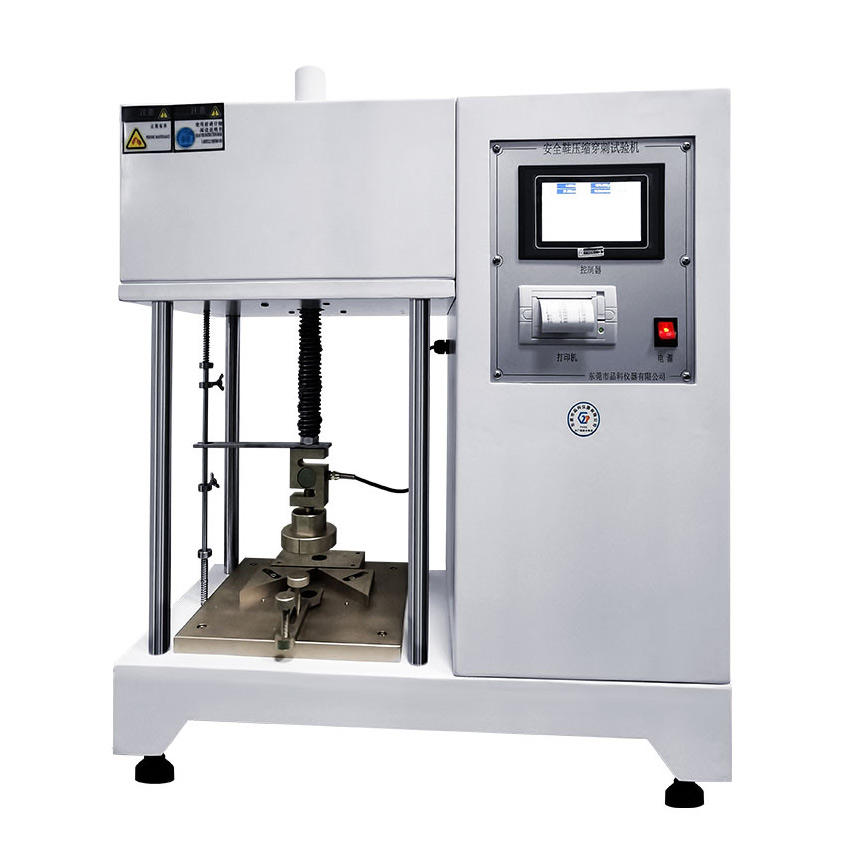

XD-F222 Footwear Compression and Puncture Resistance Tester
Footwear Compression and Puncture Tester is used to determine the pressure strength of the safety shoe steel head and the durability of the sole.
Product Description:
Footwear Compression and Puncture Tester is used to determine the pressure strength of the safety shoe steel head and the durability of the sole.
Suitable for all types of safety shoes, steel head compression and steel medium plate durability puncture test, to prevent the safety performance of shoes caused by accident when the operator is dressed in the workplace.
Standards:
CAN/CSA-Z195, GB/T 20991-5.5/5.8, ISO 20344
Specification:
Load Cell | 20kn |
Strength analysis degree | 1/20000 |
Test Accuracy | ±1% |
Display system | Chinese controller, intuitive and easy to operate |
Compression speed | 5±2mm/min (0～200mm/min stepless speed regulation) |
Motor | AC variable frequency motor, inverter control |
| Test fixtures | one set of compression/piercing fixtures |
| Printing function | optional |
| Size (W*D*H) | 82×58×71cm |
| Weight | about 48kg |
