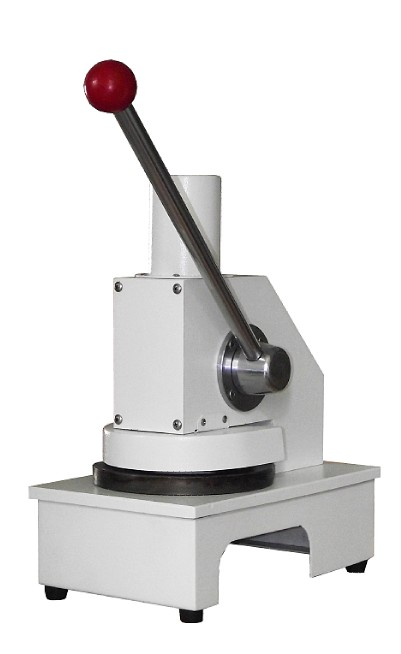

XD-A22 Paper and Board-Sampler
First, use a quantitative sampler to cut a standard sample of 100c㎡, then place the standard sample on a high-precision balance for weighing, and calculate the quantitative result of the product.
Application:
First, use a quantitative sampler to cut a standard sample of 100c㎡, then place the standard sample on a high-precision balance for weighing, and calculate the quantitative result of the product.
Standard:
GB/T 451.2, ISO 536, QB/T1671, GB/T460, GB/T1540, GB/T426
Parameter: (applicable to paper, cardboard and corrugated board)
| Sampling area | 100cm2 |
| Sampling area error | ±0.35 cm2 |
| Accuracy | ±0.2mm |
| Sampling thickness | (0.1~1.0) mm, (0.1~3.0) mm (selected according to demand) |
| Dimensions | 220*300*435mm |
| Weight | 25kg |
| Working environment | temperature (20 ± 10) ℃, humidity <85% |
